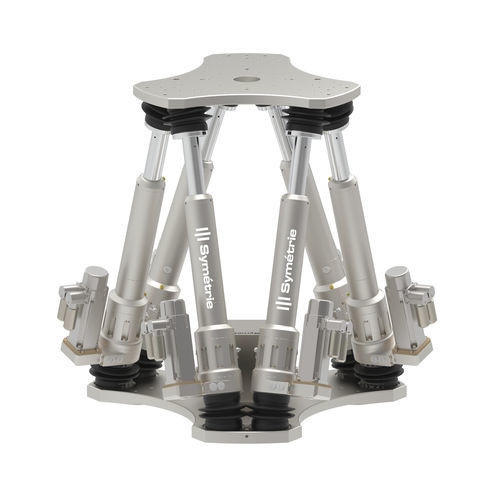

Positioning hexapod SIRIUS
brushlessfor testingfor aerospace applications

Positioning hexapod - SIRIUS - SYMETRIE - brushless / for testing / for aerospace applications
Positioning hexapod - SIRIUS - SYMETRIE - brushless / for testing / for aerospace applications
Positioning hexapod - SIRIUS - SYMETRIE - brushless / for testing / for aerospace applications - image - 2
Positioning hexapod - SIRIUS - SYMETRIE - brushless / for testing / for aerospace applications - image - 3
Positioning hexapod - SIRIUS - SYMETRIE - brushless / for testing / for aerospace applications - image - 4
Positioning hexapod - SIRIUS - SYMETRIE - brushless / for testing / for aerospace applications - image - 5
Add to favorites
Compare this product

Characteristics

Type
positioning
Motor type
brushless
Applications
for testing, for aerospace applications, for geometric alignments, for laboratory applications, for medical applications, for optical applications, for the semiconductor industry, industrial, optical beam, X-ray, for robotics
Other characteristics
high-resolution, custom, precision, high-accuracy, absolute encoder, API, for heavy loads, for mirror, satellite, with controller, with stepper motor, with parallel kinematics
Payload capacity

Min.: 0 kg
(0 lb)

Max.: 1,000 kg
(2,204.6 lb)

Linear stroke X

Min.: -150 mm
(-6 in)

Max.: 150 mm
(6 in)

Linear stroke Y

Min.: -150 mm
(-5.91 in)

Max.: 150 mm
(5.91 in)

Linear stroke Z

Min.: -100 mm
(-3.94 in)

Max.: 100 mm
(3.94 in)

Angular stroke X

Min.: -16 °

Max.: 16 °

Angular stroke Y

Min.: -16 °

Max.: 16 °

Angular stroke Z

Min.: -20 °

Max.: 20 °

Height

750 mm
(29.5 in)

Resolution

5 µm

Repeatability

2 µm

Speed

8 mm/s

Description

SIRIUS is a high precision positioning hexapod. It allows the adjustment of 1,000 kg objects with high resolution. SIRIUS hexapod meets the highest standards during testing and adjustments phases for aeronautics, optics or space. SIRIUS hexapod can be used in any orientation: vertical, horizontal, upside down…
