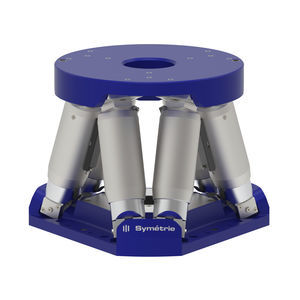

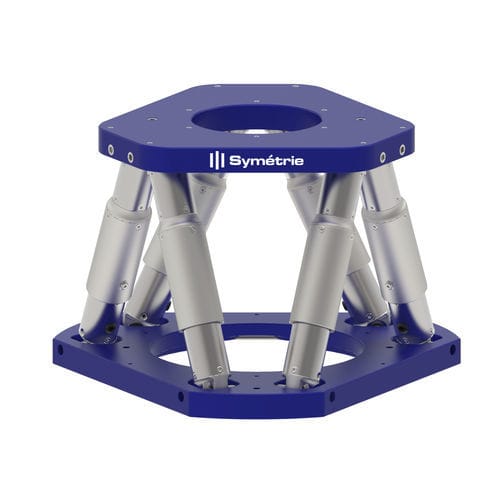

Positioning hexapod PUNADCX-rayfor wafer inspection and metrology
Add to favorites
Compare this product
Characteristics
- Type
- positioning
- Motor type
- DC
- Applications
- for geometric alignments, for aerospace applications, for testing, for fiber optics, for robotics, X-ray, for laboratory applications, for medical applications, for optical applications, for the semiconductor industry, for wafer handling, for wafer inspection and metrology, optical beam
- Other characteristics
- compact, custom, precision, high-accuracy, high-resolution, for mirror, with controller, with parallel kinematics
- Payload capacity
Max.: 25 kg
(55.1 lb)Min.: 0 kg
(0 lb)- Linear stroke X
Max.: 30 mm
(1 in)Min.: -30 mm
(-1 in)- Linear stroke Y
Max.: 30 mm
(1.18 in)Min.: -30 mm
(-1.18 in)- Linear stroke Z
Max.: 20 mm
(0.79 in)Min.: -20 mm
(-0.79 in)- Angular stroke X
Max.: 11 °
Min.: -11 °
- Angular stroke Y
Max.: 11 °
Min.: -11 °
- Angular stroke Z
Max.: 20 °
Min.: -20 °
- Height
200 mm
(7.9 in)- Resolution
0.5 µm
- Repeatability
0.75 µm
- Speed
3 mm/s
Description
SIMPLE AND AFFORDABLE HEXAPOD
PUNA is a simple hexapod meeting precision positioning applications in research or industry with an optimized budget.
Indeed PUNA hexapod can meet limited budgets while offering a resolution of 0.5 µm in translation and 5 µrad (0.0003 °) in rotation for a payload capacity of 25 kg.
APPLICATIONS
► Aeronautics and space
► Instrumentation
► Automotive
► Optics
► Semiconductors
► Synchrotrons
► Test laboratories
VIDEO
Catalogs
Puna hexapod
2 Pages
Other SYMETRIE products

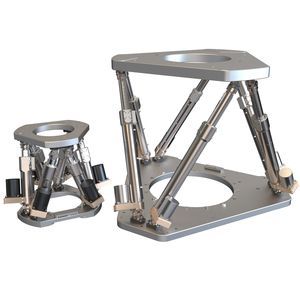

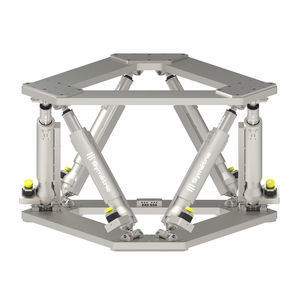

POSITIONING HEXAPODS
