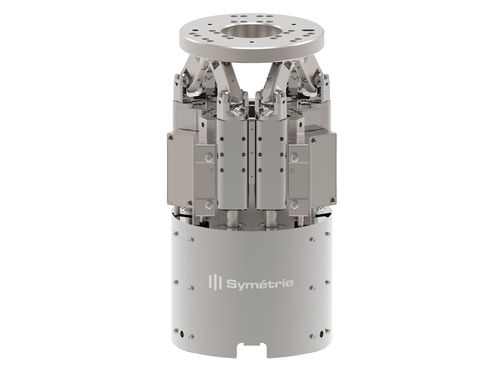

6-axis positioning system MAUKAlaserhexapodvertical
Add to favorites
Compare this product
Characteristics
- Number of axes
- 6-axis
- Features
- linear, vertical, horizontal, laser, optical, hexapod
- Applications
- industrial, for wafer inspection and metrology, for testing, for laboratory applications, X-ray, for the semiconductor industry, for clean rooms, for fiber optics, optical beam, for geometric alignments, vacuum, for sample preparation, for optical applications, for aerospace applications, PCB
- Other characteristics
- compact, with DC motor, high-accuracy, linear motor-driven, precision, high-resolution, with parallel kinematics, with controller, ultra-high vacuum, satellite
- Repeatability
0.5 µm
- Load
Min.: 0 g
(0 oz)Max.: 5,000 g
(176.37 oz)- Stroke
10 mm
(0.39 in)- Speed
1 mm/s
Description
MAUKA is a compact hexapod designed to position up to 5 kg payloads with a submicrometer resolution.
MAUKA hexapod offers travel ranges of 10 mm in X and Y, 20 mm in Z, and 16° in the three rotations. Its diameter is 107 mm and it is 198 mm height in mid position.
To minimize the diameter, we used a hexaglide geometry, where motors are mounted in line.
MAUKA hexapod operates in any direction: vertically, horizontally, or in any other angle. It is irreversible, even after a power failure.
Thanks to its absolute linear encoders, it is not necessary to carry out a homing command each time the controller is turned back on, the hexapod position is immediately known, without having to make any hexapod movement.
