Electromagnetic coil

voltagefor motorscustom-made

Product overview

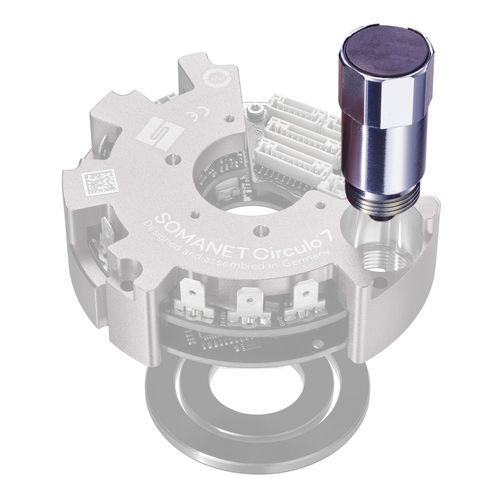

Synapticon SOMANET Circulo Integrated Braking System (IBS) microcoil compatible with SOMANET Circulo 7 & 9 heatsinks rev B1 and above. Supplied component: microcoil for IBS; remaining mechanical IBS parts are custom designed per actuator.

Notes

• Notched Wheel, Friction Material and Wave Spring are currently custom designed and manufactured for each actuator design.
• Synapticon plans to offer a standard set of the remaining IBS components in the near future.

Short description

• Electrical rating: 43 V
• Inner diameters: 3.5 mm; 4.0 mm; 4.96 mm
• Length: 33.5 mm
• Interface: No interface

Technical specifications

• Compatibility: SOMANET Circulo 7 & 9 heatsinks rev B1 and above
• Electrical rating: 43 V
• Physical dimensions (as listed): 3.5 mm; 4.0 mm; 4.96 mm; 33.5 mm
• Interface: No interface
• Scope of supply: Microcoil provided; Notched Wheel, Friction Material and Wave Spring are custom per actuator or planned as a future standard set
