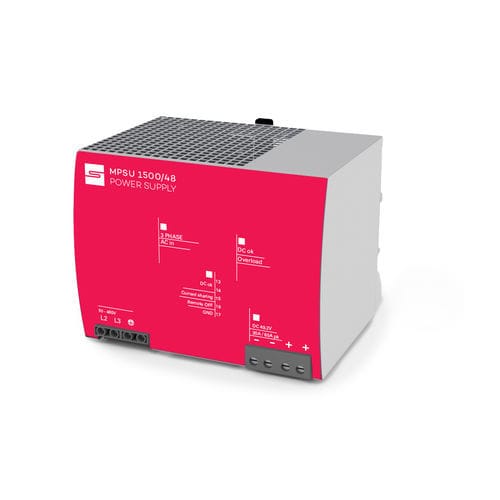

DIN rail power supply MPSU-1500-48-IB

AC/DCsingle-outputSMPS

Description
Industrial power supply designed for use with SOMANET and ACTILINK equipment. Provides 48 V DC output with 1500 W continuous and 3200 W peak capacity. Integrated braking chopper handles regenerative energy. DIN-rail mounting for control-cabinet installation. ACTILINK approved accessory.

Overview
DC supply for drives and automation modules requiring a stable 48 V rail. Accepts 3-phase AC input (380–480 V) and manages braking energy via the built-in chopper to protect the DC bus and reduce the need for external resistors.

Key features

• 1500 W continuous / 3200 W peak output
• 48 V DC nominal output
• Integrated braking chopper for regenerative energy
• 3-phase AC input, 380–480 V
• DIN-rail mounting for cabinet integration
• ACTILINK approved accessory; compatible with SOMANET and ACTILINK devices

Technical specifications

• Continuous power: 1500 W
• Peak power: 3200 W
• Output voltage: 48 V DC
• Input voltage: 3-phase AC, 380–480 V
• Integrated braking chopper (regenerative energy handling)
• Mounting: DIN rail
• Intended use: power supply for drives, controllers and automation modules
