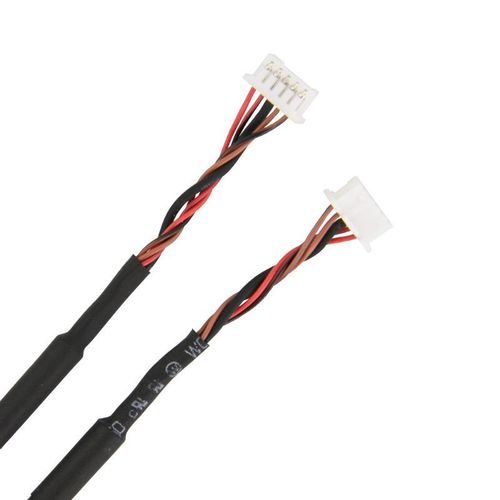

Communication patch cable

LAN

Product description
5-pin Molex PicoBlade to 5-pin Molex PicoBlade STP cable designed to daisy-chain SOMANET Nodes in industrial network installations. The shielded twisted pair and compact PicoBlade connectors suit space-constrained panels and short interconnect runs.

Applications

• Daisy-chaining multiple SOMANET Nodes in control cabinets, machines and test benches
• Signal transmission within SOMANET Node networks
• Use where shielded, low-profile connections are required

Variants

• Length: 0.5 m
• Length: 1 m
• Length: 2 m

More information
Wiring instructions and product documentation are available for node wiring and cable connection; consult SOMANET documentation for pinout and installation guidelines.

Technical specifications

• Connector: 5-pin Molex PicoBlade to 5-pin Molex PicoBlade
• Cable type: STP (Shielded Twisted Pair)
• Primary use: Daisy-chaining SOMANET Nodes
• Available lengths: 0.5 m, 1 m, 2 m
• Product template id: 595
• Product id: 792
