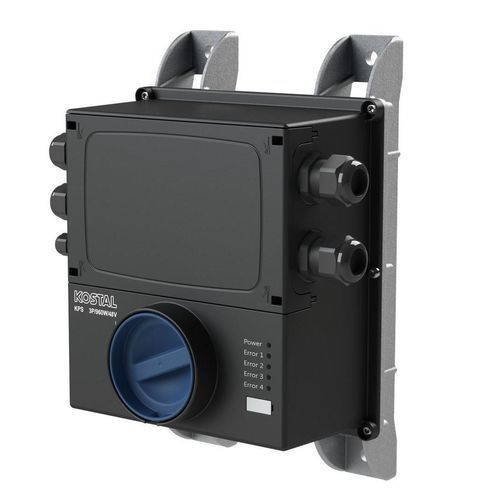

Chassis-mounted power supply MPSU-960-48-MB

AC/DCsingle-output3-phase

Short description
Industrial power supply for motion applications. 960 W continuous / 2000 W peak, input 3-phase AC 342–528 V, output 48 V DC. Integrated braking chopper, IP54, chassis-mount for cabinet-free installations.

Overview
The unit is intended for motion systems without a control cabinet. It mounts directly to the machine chassis, enabling cabinet-free system architectures and simplified machine integration. ACTILINK approved accessory.

Core SPECIFICATIONS

• Power: 960 W continuous / 2000 W peak
• Output voltage: 48 V DC
• Integrated braking chopper
• Input: 3-phase AC
• Primary input range: 342 - 528 V AC
• Mounting: chassis mount (mounts directly to the machine chassis)
• Protection class: IP54
• Designed for cabinet-free system architectures

Additional information
OEM device manufactured by KOSTAL Industrie Elektrik GmbH & Co. KG and supplied by Synapticon. Designed for industrial motion applications where no cabinet is used.

Technical specifications

• Model designation: MPSU-960-48-MB
• Continuous power: 960 W
• Peak power: 2000 W
• Output (secondary) voltage: 48 V DC
• Input (primary) supply: 3-phase AC, 342 - 528 V AC
• Integrated function: braking chopper
• Mounting type: chassis mount (direct to machine chassis)
• Ingress protection: IP54
• Application: industrial motion systems, cabinet-free architectures
• OEM manufacturer: KOSTAL Industrie Elektrik GmbH & Co. KG
• Supplier: Synapticon
