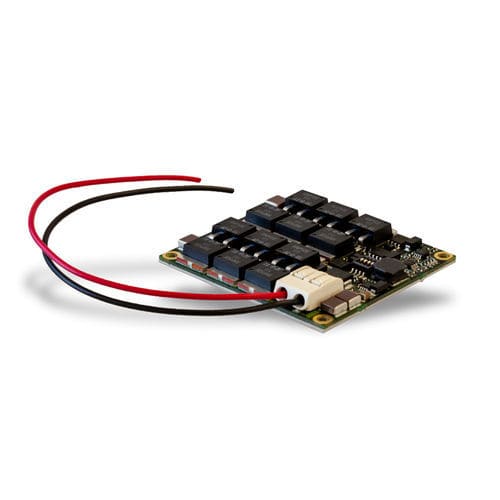

Braking chopper SOMANET Braking Chopper

Short description
SOMANET Braking Chopper 48 V 500 W dissipates regenerated energy produced when a motor decelerates a load, preventing DC bus overvoltage on drives fed from power supplies without recuperation.

Function
During active motor deceleration, kinetic energy is converted back into electrical energy. On systems without DC-bus recuperation this regenerated energy raises the DC-link voltage and can trigger drive or supply shutdown. The braking chopper shunts and dissipates the excess energy as heat to maintain safe DC voltage levels.

Technology

• dissipates 430 W peak power
• dissipates up to 90 W continuous power if adequate cooling is provided

Technical specifications

• Denomination: SOMANET Braking Chopper
• Full displayed name: SOMANET Braking Chopper 48V 500W
• Nominal voltage: 48 V
• Rated power / application shown: 500 W
• Peak dissipation: 430 W
• Continuous dissipation: up to 90 W (with adequate cooling)
• Type: shunt / regeneration (regen) board to burn recuperated energy and prevent DC overvoltage
• Use case: consumes energy when a motor decelerates a load to avoid drive or supply shutdown
