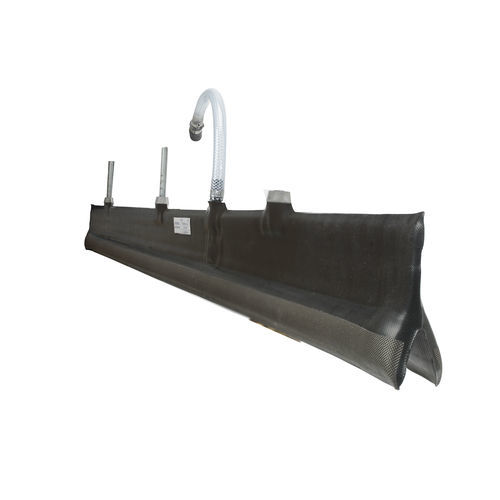

Pneumatic gripper tube TGM B

parallelhandlingfor industrial robots

The double pneumatic gripper tube TGMB is an inflatable gripper specially designed for the palletizing and depalletizing of short-neck glass bottles with a large gap between the necks, such as olive oil, vodka, cognac, and other spirit bottles. Equipped with two inflatable membranes made of vulcanized rubber, reinforced with fabric on the lower part, this gripper tube ensures a stable, secure, and damage-free grip, even on fragile bottles. Thanks to its double membrane,it guarantees optimal gripping, adapted to bottle formats with wide neck spacing. Powered by compressed air, it easily integrates into automated palletizing and depalletizing systems via its 3 threaded rods M10x70 mm, ensuring quick and reliable fixing. The TGMB Double gripper tube is available in various diameters and lengths suited for European pallets (1320 mm) and American pallets (1480 mm and 1550 mm), with custom manufacturing options to meet all your industrial requirements. Technical characteristics of the double pneumatic gripper tube TGMB: • Material: Fully vulcanized rubber, high abrasion resistance • Inflation: Compressed air, flexible tubing with quick-connect fitting • Fixing: 3 threaded rods M10x70 mm • Operating pressure: Up to 1 bar • Shape: Double membrane deflated flat tube for compact storage and precise positioning
