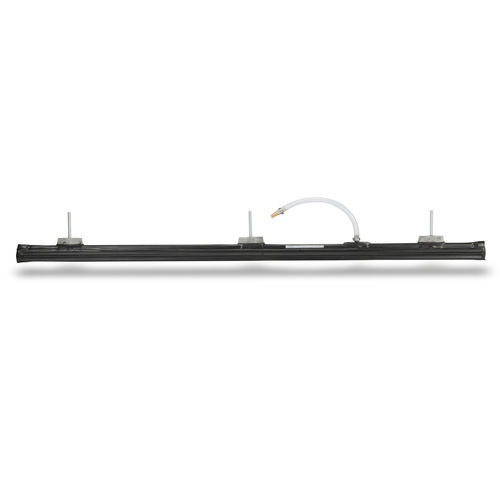

Pneumatic gripper tube TGP

parallelhandlingfor industrial robots

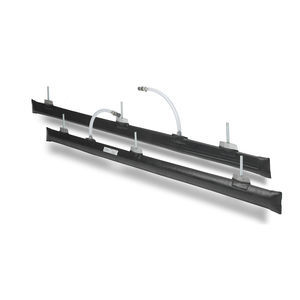

The pneumatic gripper tube TGP is specially designed for the palletizing and depalletizing of short-necked glass bottles with wide openings, such as 33 cl beer bottles or flasks. Thanks to its three different profiles, it perfectly adapts to varied neck spacing, ensuring a reliable grip that respects the glass integrity. The gripper tube consists of inflatable rubber bladders supplied with compressed air, allowing gentle handling without direct mechanical pressure. Made from abrasion-resistant vulcanized rubber, this gripper tube is perfectly suited for automated industrial environments. Easy to integrate on all types of automatic palletizers, it is quickly mounted using three M10x70 mm threaded rods. Technical characteristics of the TGP gripper tube: • Material: Abrasion-resistant vulcanized rubber • Inflation: Compressed air, flexible tubing with quick coupling • Fixing: 3 threaded rods M10x70 mm • Operating pressure: Up to 1 bar • Shape: Deflated flat bladder for compact storage and precise positioning Standard lengths available: • 1320 mm (European pallets) • 1480 mm or 1550 mm (American pallets)
