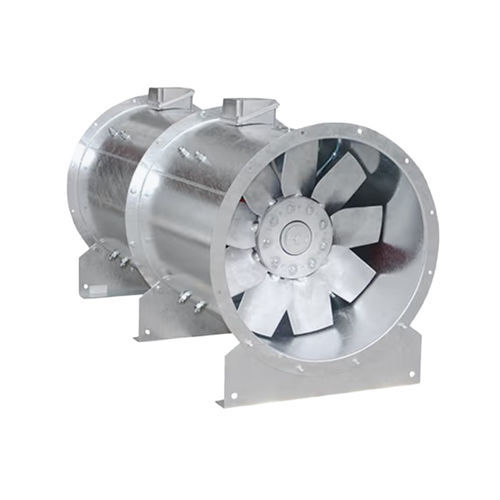

High-pressure fan AXC(B) - G

axialextractionstainless steel

High pressure smoke extraction axial fan for garages and industrial applications High pressure Certified for 300°C/120min Installation inside or outside of the fire zone Two fans mounted in series Configurable in the Axial Fans Configurator High pressure Two unidirectionally rotating fans are mounted in series to provide very high pressure in systems with complicated ducting. Application The AXC(B)-G is an axial fan ideal for use in garages and other industrial applications and provides effective extraction in operating temperatures up to 55°C continuously and up to 300°C for 2 hours. Sturdy and dependable design Corrosion-proof aluminum impellers, IE3 high-efficiency motors and a hot-dip galvanized steel casing ensure high quality and a long life time. EN 12101-3 certified The AXC(B)-G axial fans have been performance tested in accordance with multiple standards on the Systemair or AMCA fan test rig and are certified for 300°C/120min smoke extraction. The complete range is certified for installing inside or outside of the fire zone. Performance The fan can be configured to suit the individual operating point. Therefore, the pitch angle is adjusted in the factory. This provides a wide range of performance and high flexibility in the selection. Flexibility On request AXC fans can be customized with the following options: Wide range of accessories Various coating colors Special motor versions e.g. up to 100°C, with corrosion protection C5 or for other voltages FAT for projects Noise reduction AXC-Box can be used Casings of stainless steel or shorter casings
