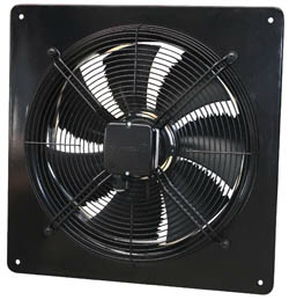

Axial fan AW

wall-mountedexhaust230VAC

Low pressure axial wall fans up to 39.000 m³/h Available with AC and EC motors for 50 and 60Hz Installation in any position Noise and energy optimized impeller Flexible The AW fans are designed for extracting air in low pressure systems. They can be installed in any position and way according to your demands. This ensures that the fans can be used in a variety of commercial and industrial applications. Performance The noise optimized axial impellers together with the high efficient external rotor motors are designed to ensure high-level performance to minimize power consumption and maximize efficiency. Construction The square wall plate is made of galvanized steel with powder coating in RAL9005. Sizes 200-300 with AC motors except AW 300E2 are available with integrated thermostat switch. Sizes 315-1000 with AC motors and AW 300E2 are available with pre-wired integrated thermal contact with leads for a motor protection device. The models with EC motors have integrated electronic motor protection. Depending on the type, the fans are equipped with an external terminal box, protection class IP44, IP54 or IP55. Motor protection Sizes 200-300 with AC motors are available with integrated thermal protection with manual (electrical) reset. Sizes 200-1000 with AC motors are available with prewired integral thermal contact with leads to a motor protection device. Models with EC motors have an integrated electronic, thermal protection including locked-rotor protection and soft-start. Impeller The AW fans use axial impellers. These are made of coated steel, composite material or aluminum
