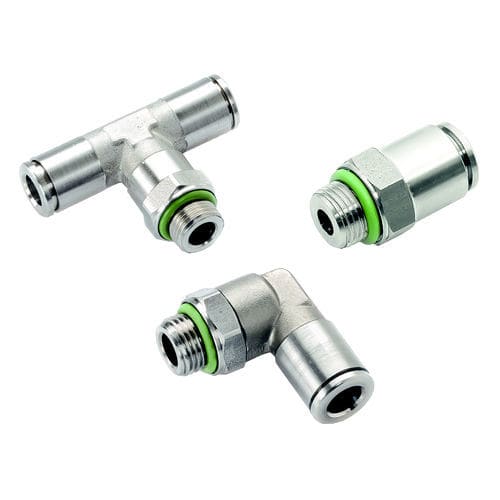

Stainless steel fitting A100X pneumaticpush-inT-shaped
Add to favorites
Compare this product
Characteristics
- Applications
- pneumatic
- Attachment
- push-in
- Configuration
- T-shaped, elbow, Y, cross
- Material
- brass, stainless steel
- Other characteristics
- swivel, chemical-resistant, with O-ring, for the food industry, automatic lock, for the pharmaceutical industry, corrosion-proof, with EPDM seal, bulkhead, for chemical applications, wide temperature range, for harsh conditions, quick-disconnect, low-temperature, wall-mounted, vibration-resistant, rugged
- Diameter
Max.: 12 mm
(0.472 in)Min.: 4 mm
(0.157 in)- Operating pressure
Max.: 16 bar
(232.06 psi)Min.: 1 bar
(14.5 psi)
Description
Construction entirely in AISI 316L stainless steel
Perfect air tightness even in the presence of extreme pipe curvatures
Perfect sealing of the tube even in the presence of shocks and vibrations
Various types of gaskets available depending on the field of application
The A100X series fittings are produced with a shape and construction characteristics similar to the A100 series in brass, but with the difference of being in AISI 316L stainless steel and therefore ideal for use in particularly difficult or extremely delicate environments such as the pharmaceutical or food sector.
The tube is held by a special elastic clamp that holds the tube on the external diameter and releases it by pushing the special extractor.
