PCI motion control card PCI-L122-DSF

EthernetdigitalRS-485

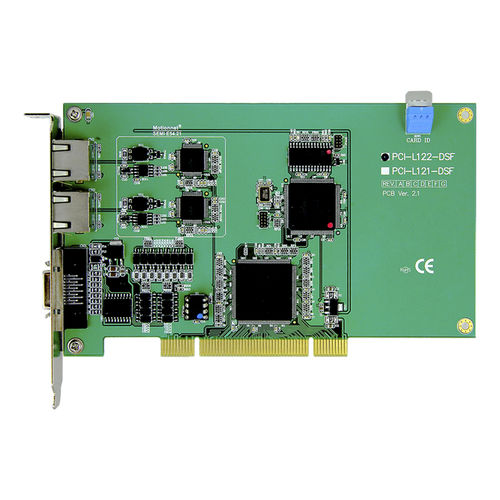

PCI-L122-DSF master control card is designed for users who need to quickly and easily develop applications such as motion control and controls of I/O. PCI-L122-DSF is a standard PCI master control card with high speed real-time network extension called Motionnet. Motionnet is a new series of communicating system designed for versatile automation applications. PCI-L122-DSF is designed following the Standard PCI form factor. This master can connect up to 64x2=128 slave modules. There are 3 categories of the slave modules, for motion control, digital I/O and miscellaneous functions. Features ● Max. 20Mbps transfer rate ● 2 Rings of Motionnet® Master ● Max. 128 Motionnet® slave modules supported ● Easy installation with RJ45 phone jack and LED diagnostic ● General purpose isolated I/O: 8 DI and 8 DO ● Hardware IC with unique ID Motionnet® Number of ring: 2 Serial interface: Half duplex RS-485 with transformer isolation Cable type: CAT5 UTP/STP Ethernet cable Surge protection: 10KV Transmission speed: 2.5Mbps, 5Mbps, 10Mbps and 20Mbps Data flow control: Automatic Communication distance: Max. 100M (20Mbps/32 slave modules) Communication slave module number: 2 Rings with Max. 128 slaves (1 Ring with 64 slaves) Isolated digital input: IN x 8, NPN/PNP type Isolated digital output: OUT x 8, NPN type Unique ID: Hardware IC General Bus type: PCI Spec. 2.2; supports 32 bits Power consumption: 5VDC at 500mA typical Working temperature: 0 to 60°C
