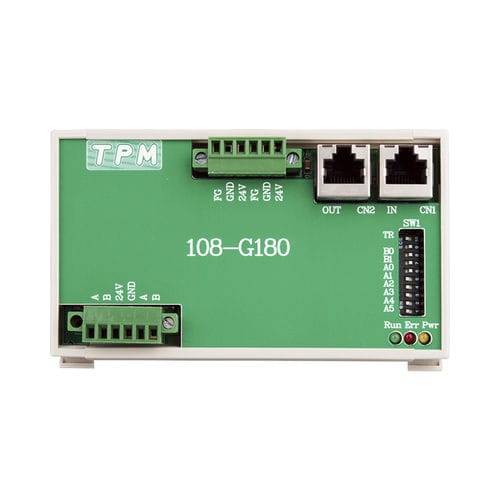

RS-485 gateway 108-G180

communicationEthernetDIN rail

108-G180 is an RS-485 Gateway Motionnet® slave modules. With CAT5 cable, 108-G180 can be connected serially. It also equipped with RJ45 phone jack for easy installation and LED for effortless diagnosis. Features ● RS-485 Gateway Motionnet® slave modules ● Max. 20Mbps transfer rate ● DCON transfers to Motionnet® ● Easy installation with RJ45 phone jack and LED diagnosis ● DIN rail mounting (L-75 x W-124 x H-31 mm) Motionnet® Serial interface: Half duplex RS-485 with transformer isolation Cable type: CAT5 UTP/STP Ethernet cable Surge protection: 10KV Transmission speed: 2.5Mbps, 5Mbps, 10Mbps and 20Mbps Number of DCON modules: Max. 16 modules Baud rate of DCON modules: 1200bps ~ 115200bps Number of gateway modules: Max. 64 modules Transfer data rate: 0.4ms/20Mbps General Power input: 18VDC to 36VDC Power consumption: 1.5W typical Working temperature: 0 to 60°C
