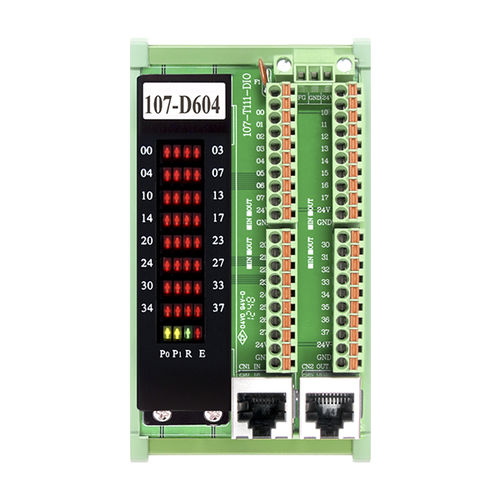

Slave I/O module 107-D604-XN

digitalRJ45RS-485

Features ● 32-Ch. Motionnet® Short Circuit Protection Digital I/O slave modules ● Max. 20Mbps transfer rate ● Easy installation with RJ45 phone jack and LED diagnosis ● Pluggable terminal block with spring plug connectors ● DIN rail mounting (L-122 x W-66 x H-104 mm) Motionnet® Serial interface: Half duplex RS-485 with transformer isolation Cable type: CAT5 UTP / STP Ethernet cable Surge protection: 10 KV Transmission speed: 2.5Mbps, 5Mbps, 10Mbps and 20Mbps I/O isolation voltage: 3750 Vrms Digital Output: 32 channels Output types: Open drain MOSFET-N Intégral suppression on diodes for inductive loads Switch capacity: Each output Ch. is 500mA at 24VDC Response time: On to Off, about 50ps ; Offto On, about 10ps Over current protection: 4A (max) for each port (8-Ch) Over voltage Protection: 42V Short Circuit Protection: Yes General - Power input: 24VDC±10% Power consumption: 4W typical Working température: 0 to 60°C
