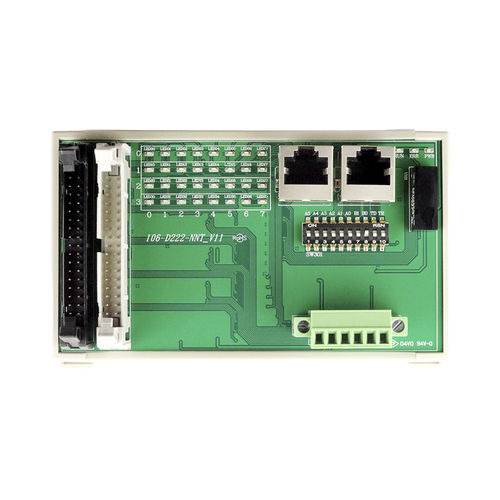

Slave I/O module 106-D2 series

digitalRJ45RS-485

106-D2xx Series is a 32-Channel Digital I/O Motionnet® slave module. With CAT5 cable, 106-D2xx Series can be connected serially. It also equipped with RJ45 phone jack for easy installation and LED for effortless diagnosis. Features ● 32-Ch. Motionnet® Digital I/O slave modules ● Max. 20Mbps transfer rate ● Easy installation with RJ45 phone jack and LED diagnosis ● DIN rail mounting (L-77 x W-124 x H-51 mm) ● 106-D2xx Series : Alternative 34-pin Box Header Motion net® - Serial interface: Half duplex RS-485 with transformer isolation Cable type: CAT5 UTP / STP Ethernet cable Surge protection: 10 KV Transmission speed: 2.5Mbps, 5Mbps, 10Mbps and 20Mbps I/O isolation voltage: 3750 Vrms Input impedance: 5.6KQ / 0.5W Input current: ±5mA (Max.) Output types: NPN open collector darlington transistors Switch capacity: Each output Ch. is 100mA at 24VDC Response time: On to Off, about 50ps ; Off to On, about 10ps Over current protection: 3A (Max.) for each port (8 Ch.) General - Power input: 24VDC±10% Power consumption: 1.5W typical Working temperature: 0 to 60°C
