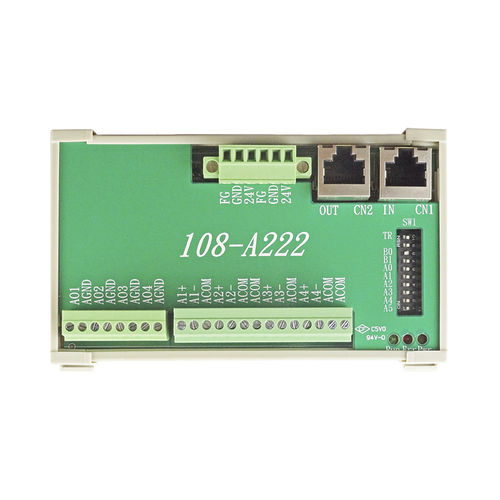

Slave I/O module 108-A222

analogRJ45RS-485

108-A222 108-A222 is an 8-Channel Analog Input and 4-Channel Analog Output Motionnet® slave module. The transfer rate is up to Max. 20Mbps. With CAT5 cable, 106-A180-01 can be connected serially. Features ● 8-Ch. Analog Input and 4-Ch. Analog Output Motionnet® slave modules ● Max. 20Mbps transfer rate ● Easy installation with RJ45 phone jack and LED diagnosis ● Connectors with screw terminal block ● DIN rail mounting (L-77 x W-124 x H-34 mm) Motionnet® - Serial interface: Half duplex RS-485 with transformer isolation Cable type: CAT5 UTP / STP Ethernet cable Surge protection: 10 KV Transmission speed: 2.5Mbps: 5Mbps, 10Mbps and 20Mbps I/O isolation voltage: 3750 Vrms ADC/DAC Converter - Effective résolution: 12 bits Input impédance: 20MQ Input range: 0-10V, 0~500mV, 4~20mA Output impédance: 0.3Q Output range: 0-10V Sample rate: 10ms/ch. Fault and over-voltage protection: Upto ±12V Accuracy: ±2LBS(INL) / ±0.2LBS(DNL) Zéro drift (ADC): ±0.2uV/°C Span drift (ADC): ±0.5ppm/°C Zéro drift (DAC): -0.5ppm/°C (25°C ~125°C) Span drift (DAC): -3ppm/°C General - Power input: 18VDC to 36VDC Power consumption Working température: 3W typical 0 to 60°C
