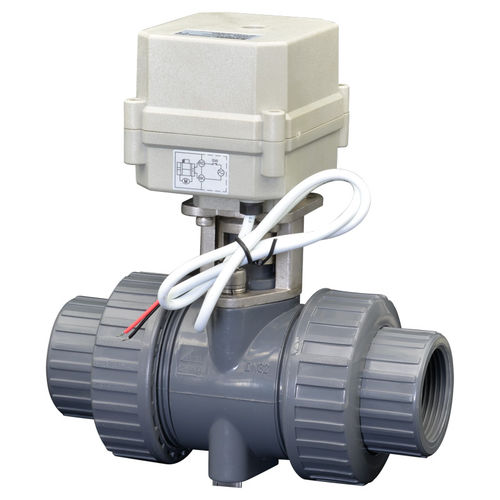

Ball valve A100-T20-P2-C
electrically-operatedfor airIP67

ball valve
ball valve
ball valve
ball valve
ball valve
Add to favorites
Compare this product

Go to the Taizhou Tonhe Flow Control Equipment Co.,ltd website for more information

Characteristics

Type
ball
Operation
electrically-operated
Media
for air
Body
IP67, plastic
DN

Min.: 0.375 in

Max.: 2 in

Pressure

1,300,000 Pa
(188.5 psi)

Temperature

Min.: -15 °C
(5 °F)

Max.: 50 °C
(122 °F)

Description

echnical Parameters: Valve size NPT/BSP 1 1/4" NPT/BSP 1 1/2" NPT/BSP 3/4" NPT/BSP 1" (Optional) Maximum working pressure 1.3 MPa Circulation medium Fluid, air Rated voltage DC5V/ DC12V DC24V AC/DC9-24V AC/DC-35V AC110-230V (Optional ) Wiring control methods CR2-01 CR2-02 CR3-01 CR3-02 CR3-03 CR3-04 CR3-05 CR4-01 CR5-01 CR5-02 CR7-01 CR7-02 CR7-04（Optional） Working current ≤500MA Open/close time ≤15S Life time 50000 times Valve Body material PVC Actuator material Engineering Plastics Sealing material EPDM & PTFE Actuator rotation 90° Max. torque force 10Nm Cable Length 0.5m,1.5m（Optional） Environment temperature -15℃～50℃ Liquid temperature 2℃～90℃ Manual override Yes No（Optional） Indicator Yes No （Optional） Protection class IP67
