Controller box BCPK serieswall-mountpole-mountedrectangular
Add to favorites
Compare this product
Characteristics
- Construction
- wall-mount, pole-mounted
- Configuration
- rectangular, square
- Material
- polycarbonate
- Application
- network, for controllers, for electrical installation
- Protection level
- vandal-proof, flame-retardant, heat-resistant, IP65
- Other characteristics
- with interlock system, with hinged cover, with transparent cover
- Width
Max.: 630 mm
(24.8 in)Min.: 90 mm
(3.5 in)- Height
Max.: 288 mm
(11.3 in)Min.: 70 mm
(2.8 in)- Depth
Max.: 830 mm
(32.68 in)Min.: 120 mm
(4.72 in)
Description

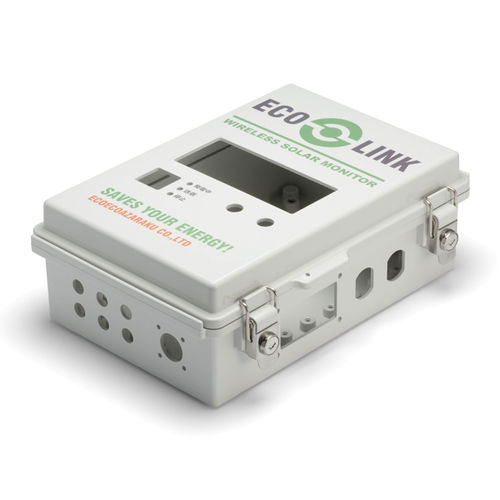

IP65 hinged polycarbonate enclosure equipped with a key lock latch.
Made of light gray UL94V-0 polycarbonate, which has excellent heat-resistance properties.
Two cover types are available, in Light grey or Transparent.
***Transparent top cover type (T type) is a BTO (built-to-order) product. Lead time is approx. 2 months.***
Lockable enclosure are best used for tamper prevention in FA applications and network communication fields, as well as for control boxes.
Specifications
See TAKACHI website for accessories and optional parts.
Made of light gray UL94V-0 polycarbonate, which has excellent heat-resistance properties.
Two cover types are available, in Light grey or Transparent.
***Transparent top cover type (T type) is a BTO (built-to-order) product. Lead time is approx. 2 months.***
Lockable enclosure are best used for tamper prevention in FA applications and network communication fields, as well as for control boxes.
Specifications
- Material : Polycarbonate UL94V-0, Glass fiber filled polycarbonate UL94V-0
- Protection class : IP65
- Operating temperature : -20°C ~ +75°C
- 50 sizes available for Light grey covers and 46 sizes available for Transparent covers.
See TAKACHI website for accessories and optional parts.
