Distribution electrical enclosure BCAS series

controlswitchingwall-mounted

Overview

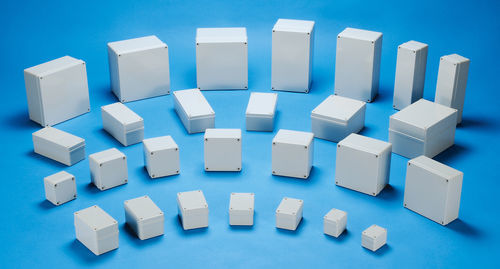

Low-cost, compact screw-fastening waterproof ABS plastic enclosure suitable for junction boxes, wiring pull boxes, switch housings, controllers and similar industrial applications.

Highlights

• 39 different sizes available.
• Protection class: IP65.
• Operating temperature: -10°C ~ +60°C.
• Recommended cover screw torque: 1N·m ~ 1.5N·m (1N·m for BCAS050604G, BCAS050605G).

Materials

• Top cover (G color type) & Body: ABS UL94HB.
• Top cover (T color type): Polycarbonate / Transparent.
• Gasket: Polyurethane.
• Cover screw: Nylon.
• Color / Similar matching: White gray / Munsell 5R8/0.5.

Product No. / Dimensions (table)
Product No. | External W x D x H (mm) | Internal w x d x h (mm) | Weight (g)
BCAS050604G | 50 x 65 x 45 | 42.5 x 40 x 33 | 69
BCAS050605G | 50 x 65 x 55 | 42.5 x 40 x 43 | 76
BCAS060905G | 65 x 95 x 55 | 54.5 x 58 x 41.5 | 124
BCAS071005G | 75 x 105 x 55 | 65 x 68 x 41.3 | 148
BCAS080806G | 80 x 80 x 60 | 69.5 x 43 x 46.4 | 133
BCAS081104G | 80 x 110 x 45 | 70 x 73 x 31.6 | 138
BCAS081107G | 80 x 110 x 70 | 68.5 x 73 x 56.7 | 165
BCAS081108G | 80 x 110 x 85 | 68 x 74 x 71.4 | 191
BCAS081110G | 80 x 110 x 100 | 68 x 74 x 86.2 | 227
BCAS081307G | 80.5 x 130 x 70 | 69.5 x 93 x 56.5 | 188
BCAS081308G | 80 x 130 x 85 | 68.5 x 93 x 71.5 | 222
BCAS081807G | 80 x 180 x 70 | 69.5 x 142.5 x 57 | 233
BCAS081808G | 80 x 180 x 85 | 69.5 x 142.5 x 71.5 | 275
BCAS082507G | 80 x 250 x 70 | 69 x 212.5 x 56.5 | 294
BCAS082508G | 80 x 250 x 85 | 69 x 212.5 x 71.5 | 348
BCAS101007G | 100 x 100 x 75 | 89.7 x 61.3 x 61.5 | 212
BCAS101010G | 100 x 100 x 100 | 88.7 x 60.3 x 86.5 | 253
BCAS101807G | 100 x 185 x 70 | 88 x 146.5 x 56.7 | 298
BCAS102007G | 100 x 200 x 70 | 87 x 159 x 56.5 | 282
BCAS102307G | 100 x 230 x 70 | 87 x 188 x 56.4 | 336
BCAS121207G | 125 x 125 x 75 | 112 x 86.5 x 61.5 | 252
BCAS121210G | 125 x 125 x 100 | 113 x 86.5 x 86.5 | 311
BCAS141709G | 140 x 170 x 95 | 132 x 133 x 81.3 | 416
BCAS142309G | 140 x 230 x 95 | 127 x 191 x 81.5 | 485
BCAS151507G | 150 x 150 x 75 | 138.5 x 112 x 61.6 | 322
BCAS151510G | 150 x 150 x 100 | 137.5 x 112 x 86.6 | 398
BCAS152004G | 150 x 200 x 46 | 136.1 x 156.1 x 32.4 | 335
BCAS152007G | 150 x 200 x 75.5 | 136.1 x 156.1 x 61.5 | 423
BCAS152010G | 150 x 200 x 100 | 136.1 x 156.1 x 86.5 | 473
BCAS152013G | 150 x 200 x 130 | 136.1 x 156.1 x 116.5 | 582
BCAS152016G | 150 x 200 x 160 | 137.5 x 157.5 x 146.5 | 631
BCAS152510G | 150 x 250 x 100 | 138.5 x 213 x 86.1 | 565
BCAS152513G | 150 x 250 x 130 | 138.5 x 213 x 116.4 | 687
BCAS161607G | 160 x 160 x 70 | 148 x 121.5 x 56.5 | 334
BCAS202010G | 201 x 201 x 100 | 188 x 163 x 85.7 | 604
BCAS202013G | 201 x 201 x 130 | 188 x 161 x 116.5 | 685
BCAS202016G | 201 x 201 x 160 | 187 x 162.5 x 146 | 801
BCAS202019G | 201 x 201 x 190 | 187 x 162.5 x 176.3 | 907.5
BCAS212310G | 210 x 230 x 100.3 | 197.8 x 193.2 x 87.1 | 644.5

Characteristics / technical specifications

• Protection class: IP65.
• Operating temperature range: -10°C to +60°C.
• Recommended cover screw torque: 1N·m ~ 1.5N·m (1N·m for BCAS050604G, BCAS050605G).
• Materials: ABS UL94HB (body & G top cover), Polycarbonate (T top cover), Polyurethane gasket, Nylon cover screw.
• Color: White gray (Munsell 5R8/0.5); transparent option for T type.
• Available in 39 sizes (various external/internal dimensions and weights).
