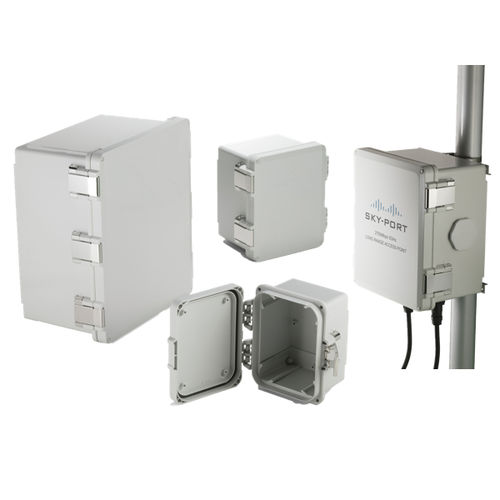

Enclosure with hinged cover UPC seriespole-mountedrectangularpolycarbonate
Add to favorites
Compare this product
Characteristics
- Construction
- pole-mounted
- Configuration
- rectangular
- Material
- polycarbonate
- Application
- electronic equipment, outdoor, network
- Protection level
- waterproof, IP66, IP68
- Other characteristics
- with hinged cover, high performance
- Width
Min.: 172 mm
(6.8 in)Max.: 431 mm
(17 in)- Height
Min.: 134 mm
(5.3 in)Max.: 286 mm
(11.3 in)- Depth
Min.: 223 mm
(8.78 in)Max.: 482 mm
(18.98 in)
Description
IP68 high-performance polycarbonate box which withstands immersion in water up to 2m for 24 hours.
Highly durable with material thickness and stainless steel latches.
Built-in bosses on both the top cover and base allow for displays and circuit boards to be attached.
Perfect for use as outdoor communication network devices, solar power junction boxes, FA controllers and more.
Specifications
See TAKACHI website for accessories and optional parts.
Highly durable with material thickness and stainless steel latches.
Built-in bosses on both the top cover and base allow for displays and circuit boards to be attached.
Perfect for use as outdoor communication network devices, solar power junction boxes, FA controllers and more.
Specifications
- Material : Polycarbonate UL94V-2
- Protection class : IP68 (IP66 for some models)
- Operating temperature : -20°C ~ +75°C
- 6 sizes available.
- Available in White grey.
See TAKACHI website for accessories and optional parts.
