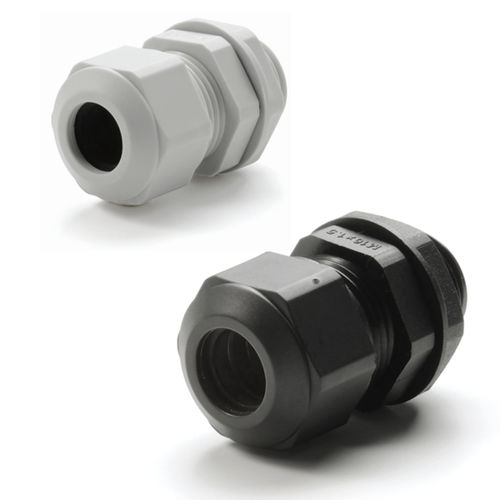

IP67 cable gland AG seriesPAhalogen-freemetric
Add to favorites
Compare this product
Characteristics
- Material
- PA
- Protection level
- IP67, halogen-free
- Other characteristics
- threaded, straight, metric
- Cable diameter
Max.: 42 mm
(1.65 in)Min.: 2.5 mm
(0.1 in)- Thread diameter
Max.: 50.4 mm
(1.98 in)Min.: 8 mm
(0.31 in)- Operating temperature
Max.: 100 °C
(212 °F)Min.: -20 °C
(-4 °F)
Description
High water protection IP68 (1bar / 30min) polyamide cable gland.
Wide selection, for M8 ~ M50, suitable for Φ2.5mm ~ Φ42 mm cable.
Super tough and superior heat resistant PA6GF (glass fiber filled PA6) material on cap and connector.
Safer halogen free, eco-friendly product.
Specifications
See TAKACHI website for details.
Wide selection, for M8 ~ M50, suitable for Φ2.5mm ~ Φ42 mm cable.
Super tough and superior heat resistant PA6GF (glass fiber filled PA6) material on cap and connector.
Safer halogen free, eco-friendly product.
Specifications
- Material : PA6GF, TPE
- Protection class : IP68 (1bar / 30min)
- Operating temperature : -20°C ~ +100°C
- EN50262 Ver. A compliant
- 25 sizes available
- Available in Black and Light gray
See TAKACHI website for details.
