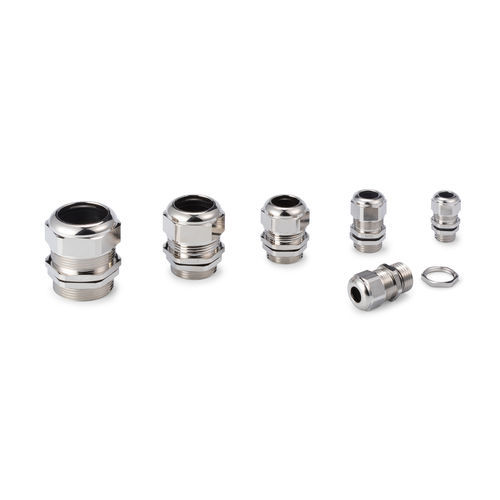

Brass cable gland RMC seriesnickel-plated brassIP67metric
Add to favorites
Compare this product
Characteristics
- Material
- nickel-plated brass, brass
- Protection level
- IP67
- Other characteristics
- metric, threaded
- Cable diameter
Max.: 22.5 mm
(0.89 in)Min.: 5 mm
(0.2 in)- Thread diameter
Max.: 32.3 mm
(1.27 in)Min.: 12.2 mm
(0.48 in)- Operating temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description
Economical metal cable gland.
Wide selection available from M12 ~ M32.
Specifications
See TAKACHI website for details.
Wide selection available from M12 ~ M32.
Specifications
- Material : Brass, TPE
- Protection class : IP67 equivalent (in-house test)
- Operating temperature : -20°C ~ +80°C
- 10 models available
See TAKACHI website for details.
