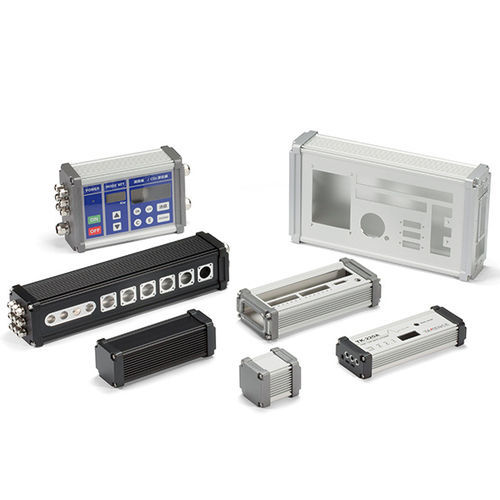

Custom enclosure AWNS seriesdesktophandheldrectangular
Add to favorites
Compare this product
Characteristics
- Construction
- desktop, handheld
- Configuration
- rectangular
- Material
- extruded aluminum
- Application
- industrial
- Protection level
- waterproof, rugged, IP68, EMC, shielded
- Other characteristics
- custom, heat sink
- Width
Max.: 206 mm
(8.1 in)Min.: 55 mm
(2.2 in)- Height
Max.: 81 mm
(3.2 in)Min.: 35 mm
(1.4 in)- Depth
Max.: 700 mm
(27.56 in)Min.: 50 mm
(1.97 in)
Description
***SEE TAKACHI WEBSITE FOR DETAILS BEFORE ENQUIRING***
IP68 and heat dissipation enclosure design. Selectable in both Normal or EMC Shielded type.
Selectable in 8 different Width/Height types, with adjustable length (depth) in 1mm increments from 50 to 700mm.
PCB or chassis can be horizontally mounted by sliding into an inner-grooved body frame.
Suitable for measuring instruments, industrial control box, industrial camera housing, and more.
Specifications
See TAKACHI website for details.
IP68 and heat dissipation enclosure design. Selectable in both Normal or EMC Shielded type.
Selectable in 8 different Width/Height types, with adjustable length (depth) in 1mm increments from 50 to 700mm.
PCB or chassis can be horizontally mounted by sliding into an inner-grooved body frame.
Suitable for measuring instruments, industrial control box, industrial camera housing, and more.
Specifications
- Material : Extruded aluminium A6063S-T5, diecast aluminium ADC12
- Protection class : IP68
- Operating temperature : -40°C ~ +105°C
- EMC shielded
- Size range : W & H=select from 8 sizes, D=specify between 50 and 700mm in 0.1mm increments
- Available in 4 color combinations depending on model.
- Select screws from Phillips or Hex
See TAKACHI website for details.
