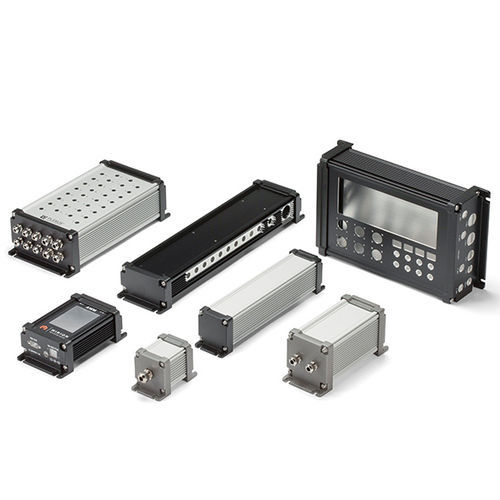

Custom enclosure AWS serieswith flangerectangularcast aluminum
Add to favorites
Compare this product
Characteristics
- Construction
- with flange
- Configuration
- rectangular
- Material
- extruded aluminum, cast aluminum
- Application
- outdoor
- Protection level
- waterproof, IP68, EMC-shielded, for harsh environments
- Other characteristics
- custom, sealed, extruded
- Width
Min.: 55 mm
(2.2 in)Max.: 206 mm
(8.1 in)- Height
Min.: 39 mm
(1.5 in)Max.: 87 mm
(3.4 in)- Depth
Min.: 50 mm
(1.97 in)Max.: 700 mm
(27.56 in)
Description
***SEE TAKACHI WEBSITE FOR DETAILS BEFORE ENQUIRING***
IP68 and heat dissipation enclosure with flanged end panels. Selectable in both Normal or EMC Shielded type.
Selectable in 8 different Width/Height types, with adjustable length (depth) in 1mm increments from 50 to 700mm.
PCB or chassis can be horizontally mounted by sliding into an inner-grooved body frame.
Designed for a tough environment where waterproof and heat countermeasures are required.
Suitable for outdoor use such as LED power supply and junction boxes.
Specifications
See TAKACHI website for details.
IP68 and heat dissipation enclosure with flanged end panels. Selectable in both Normal or EMC Shielded type.
Selectable in 8 different Width/Height types, with adjustable length (depth) in 1mm increments from 50 to 700mm.
PCB or chassis can be horizontally mounted by sliding into an inner-grooved body frame.
Designed for a tough environment where waterproof and heat countermeasures are required.
Suitable for outdoor use such as LED power supply and junction boxes.
Specifications
- Material : Extruded aluminium A6063S-T5, diecast aluminium ADC12
- Protection class : IP68
- Operating temperature : -40°C ~ +105°C
- EMC shielded
- Size range : W & H=select from 8 sizes, D=specify between 50 and 700mm in 0.1mm increments
- Available in 4 color combinations depending on type
- Select screws from Phillips or Hex
See TAKACHI website for details.
