Custom enclosure EXPS seriesdesktoprectangularextruded aluminum
Add to favorites
Compare this product
Characteristics
- Construction
- desktop
- Configuration
- rectangular
- Material
- extruded aluminum
- Application
- for instrumentation
- Protection level
- shockproof
- Other characteristics
- custom, with corner guard
- Width
Max.: 300 mm
(11.8 in)Min.: 69 mm
(2.7 in)- Height
Max.: 140 mm
(5.5 in)Min.: 34 mm
(1.3 in)- Depth
Max.: 500 mm
(19.69 in)Min.: 55 mm
(2.17 in)
Description
***SEE TAKACHI WEBSITE FOR DETAILS BEFORE ENQUIRING***

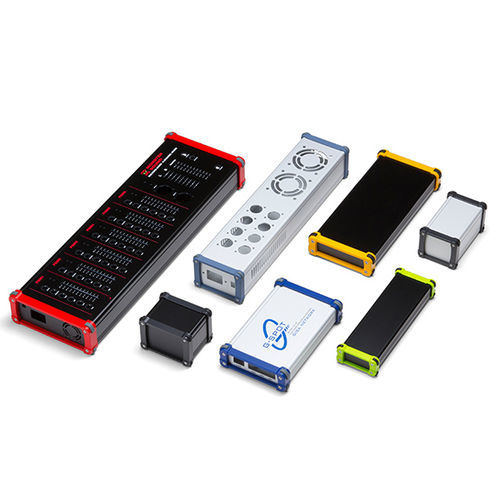

Custom sized shock-proof design instrument enclosure.
Corner guards are designed to be both aesthetically pleasing, and impact resistant.
Selectable 22 different Width/Height profiles and specified length (depth) from 55 to 500mm in 1mm increments.
Specifications
See TAKACHI website for details.
Custom sized shock-proof design instrument enclosure.
Corner guards are designed to be both aesthetically pleasing, and impact resistant.
Selectable 22 different Width/Height profiles and specified length (depth) from 55 to 500mm in 1mm increments.
Specifications
- Material : Extruded aluminium A6063S-T5, aluminium A1100P, PC+ABS (flame-resistant)
- Size range : W & H=select from 22 sizes, D=specify between 55 ~ 500mm in 1mm increments
- Available in 16 color combinations
See TAKACHI website for details.
