Custom enclosure MCGF seriesdesktoprectangularaluminum
Add to favorites
Compare this product
Characteristics
- Construction
- desktop
- Configuration
- rectangular
- Material
- aluminum
- Application
- for power supplies, for PC, storage
- Protection level
- shockproof
- Other characteristics
- custom, with handle, with corner guard
- Width
Min.: 150 mm
(5.9 in)Max.: 500 mm
(19.7 in)- Height
Min.: 80 mm
(3.1 in)Max.: 250 mm
(9.8 in)- Depth
Min.: 150 mm
(5.91 in)Max.: 400 mm
(15.75 in)
Description
***SEE TAKACHI WEBSITE FOR DETAILS BEFORE ENQUIRING***

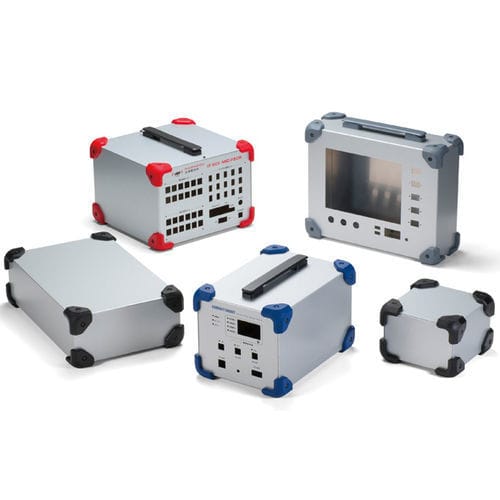

Custom sized aluminum case equipped with shockproof and anti-slip elastomer corner guards.
Suitable to be used as a fan-less PC, power supply, power storage device etc.
Carrying handle can withstand a maximum load up to 30.0 kg.
Specifications
See TAKACHI website for details.
Custom sized aluminum case equipped with shockproof and anti-slip elastomer corner guards.
Suitable to be used as a fan-less PC, power supply, power storage device etc.
Carrying handle can withstand a maximum load up to 30.0 kg.
Specifications
- Material : Aluminium A1100P, TPE
- Conductive enclosure
- Size range : W=specify between 150 ~ 500mm, H=80 ~ 250mm, D=specify between 150 ~ 400mm in 1mm increments
- 4 colors available
- Select handle type from 3 options
See TAKACHI website for details.
