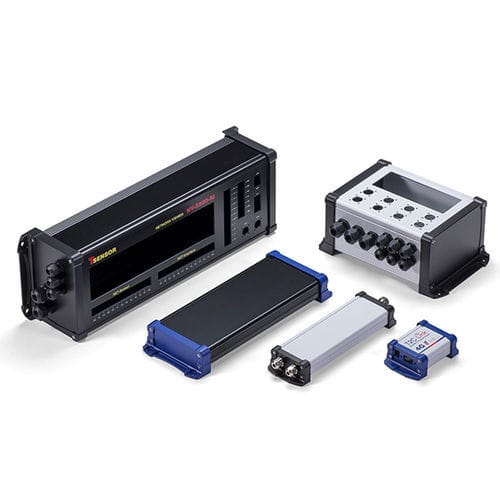

Custom enclosure EXWFS serieswith flangewall-mountrectangular
Add to favorites
Compare this product
Characteristics
- Construction
- wall-mount, with flange
- Configuration
- rectangular
- Material
- ABS, PC, extruded aluminum
- Application
- for controllers, transmitter
- Protection level
- waterproof, flame-retardant, IP65, IP54
- Other characteristics
- custom, extruded
- Width
Max.: 298 mm
(11.7 in)Min.: 66 mm
(2.6 in)- Height
Max.: 143 mm
(5.6 in)Min.: 34 mm
(1.3 in)- Depth
Max.: 500 mm
(19.69 in)Min.: 55 mm
(2.17 in)
Description
***SEE TAKACHI WEBSITE FOR DETAILS BEFORE ENQUIRING***
Custom sized waterproof aluminium enclosure with flanged end panels make it easy for wall mounting.
Suitable to be used as wall mounted controller and transmitter.
Specifications
See TAKACHI website for details.
Custom sized waterproof aluminium enclosure with flanged end panels make it easy for wall mounting.
Suitable to be used as wall mounted controller and transmitter.
Specifications
- Material : Extruded aluminium A6063S-T5, PC+ABS (flame-resistant)
- Protection class : IP65 (IP54 for some models)
- Operating temperature : -10°C ~ +60°C
- Size range : W & H=select from 22 sizes, D=specify between 55 ~ 500mm in 1mm increments
- Available in 6 color combinations
See TAKACHI website for details.
