CNC lathe TPS-V1000
horizontal

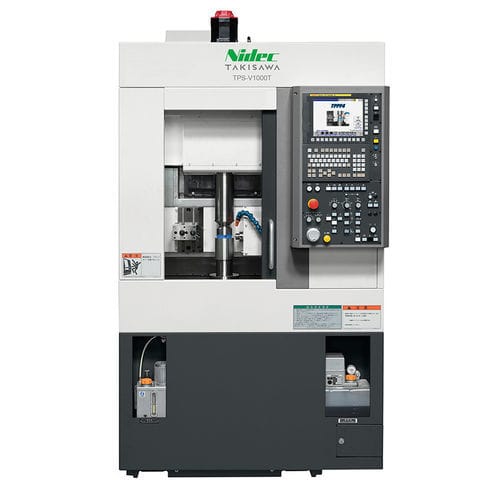

CNC lathe - TPS-V1000 - TAKISAWA - horizontal
CNC lathe - TPS-V1000 - TAKISAWA - horizontal
Add to favorites
Compare this product

Characteristics

Control type
CNC
Spindle orientation
horizontal
Diameter

130 mm
(5.12 in)

Maximum part length

160 mm
(6 in)

Nominal power

11 kW, 15 kW
(15 hp, 20.4 hp)

Overall lenght

1,180 mm
(46 in)

Overall width

3,075 mm
(121 in)

Overall height

2,200 mm
(87 in)

Weight

4,000 kg, 4,170 kg
(8,818 lb, 9,193 lb)

Description

Overview
  • The TPS-V1000 is a vertical piston CNC machine engineered for high-speed non-circular machining while minimizing floor space.


Key features
  • Ceramic slide and linear motor drive mounted to the non-circular machining device for high acceleration and reduced machining time.
  • Two configurations: TPS-V1000 (standard) and TPS-V1000T (spindle-synchronous NC servo tailstock).
  • Optional comb plate available to integrate processes beyond non-circular machining.


Machine main specifications
  • Tailstock: TPS-V1000 = None; TPS-V1000T = Included (spindle-synchronous NC servo tailstock).
  • Max. turning diameter / Max. turning length (mm): Φ130 / 160.
  • Spindle speed (min⁻¹): 4000.
  • Type of turret: for non-circular machining.
  • Spindle motor (kW): 15 / 11.
  • Electric power (kVA): TPS-V1000 = 20; TPS-V1000T = 21.
  • Air pressure source (MPa): 0.5.
  • Machine height (mm): 2200.
  • Required floor space (mm): 1180 × 3075.
  • Machine weight (kg): TPS-V1000 = 4000; TPS-V1000T = 4170.


Technical characteristics
  • Product type: Vertical piston CNC machine specialized for non-circular machining.
  • Primary benefits: compact footprint, high-speed machining capability, and process flexibility via the optional comb plate.
  • Variants: TPS-V1000 (standard) and TPS-V1000T (with NC servo tailstock for spindle-synchronous rotation).
