CNC lathe TPS-3400HⅡ

horizontalhigh-speed

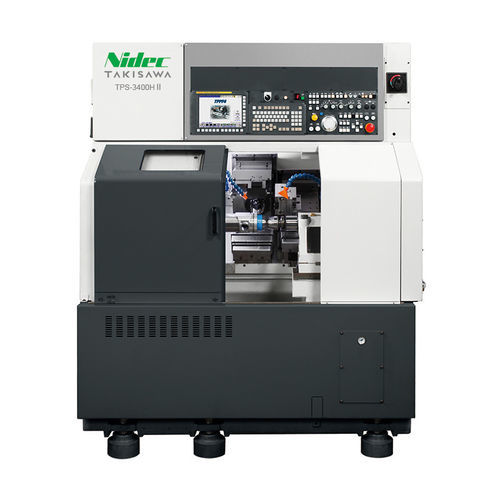

The TPS-3400HⅡ is a Takisawa piston machining center engineered for OD oval machining and ring groove machining of automobile engine pistons. It integrates Takisawa's original machining software and high-speed oval machining hardware to reduce process steps while maintaining high accuracy.

Key features

• Process reduction by combining OD oval machining and ring groove machining of automobile engine pistons.
• Takisawa's original piston machining programming software (TPPF3) for optimized machining operations.
• Takisawa's original oval machining unit delivering very high machining speed and high accuracy.
• Turning tool post for ring groove machining of piston OD slideway can be tilted according to groove shape to suit different groove runs.
• High-speed machining function synchronizes the C, Z and Y axes to enable high-speed machining of OD to oval sectional profiles.

Applications

• Integrated machining of OD oval and ring groove for engine pistons to reduce process steps in production.

Technical specifications

• Max. Turning Diameter / Max. Turning Length: Φ260 / 285 mm
• Spindle Speed: 4000 min⁻¹
• Type of Turret: for Non-Circular Machining; for Turning
• Spindle Motor: 11 kW
• Electric Power: 22.2 kVA
• Air Pressure Source: 0.5 MPa
• Machine Height: 1970 mm
• Required Floor Space: 1600 × 2370 mm
• Machine Weight: 3000 kg
