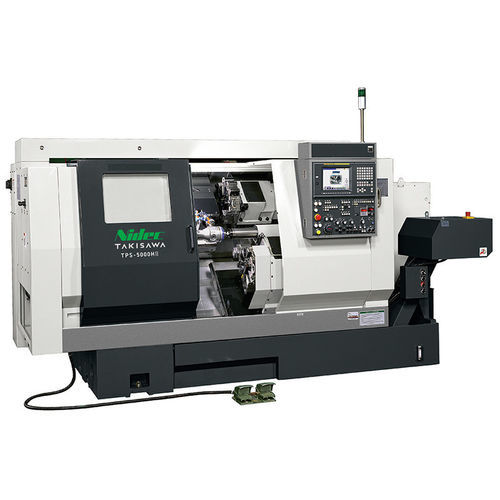

CNC lathe TPS-5000HⅡhorizontal4-axisdouble-turret
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Number of axes
- 4-axis
- Turret
- double-turret
- Applications
- for production, for non-circular parts
- Other characteristics
- compact, multi-function
- Diameter
320 mm
(12.6 in)- Spindle speed
3,000 rpm, 4,000 rpm
(18,849.556 rad.min-1, 25,132.741 rad.min-1)- Maximum part length
250 mm
(10 in)- Maximum cutting length
250 mm
(10 in)- Nominal power
7.5 kW, 11 kW
(10.2 hp, 15 hp)- Overall lenght
3,880 mm
(153 in)- Overall width
2,673 mm
(105 in)- Overall height
1,850 mm
(73 in)- Weight
6,000 kg
(13,228 lb)
Description
The TPS-5000HⅡ is a process-integration CNC lathe that combines non-circular (oval) piston OD machining with additional operations using two turrets. The 2-turret, 4-axis configuration integrates non-circular machining into a compact cell to support flexible, variable-kind and variable-lot piston production.
Key features
Machine main specifications
Key features
- Piston OD oval (non-circular) machining
- Additional machining operations using two turrets
- 2-turret, 4-axis CNC lathe with integrated non-circular machining capability
- Optimized for efficient piston processing in variable-kind / variable-lot production
Machine main specifications
- Max. Turning Diameter / Max. Turning Length: φ320 / 250 mm
- Spindle Speed: Turning: 4000 min⁻¹, Non-Circular: 3000 min⁻¹
- Type of Turret: T1, T2: Turning turret; T3: for non-circular machining
- Spindle Motor: 11 / 7.5 kW
- Electric Power: 30.8 kVA
- Air Pressure Source: 0.5 MPa
- Machine Height: 1850 mm
- Required Floor Space: 3880 × 2673 mm
- Machine Weight: 6000 kg
