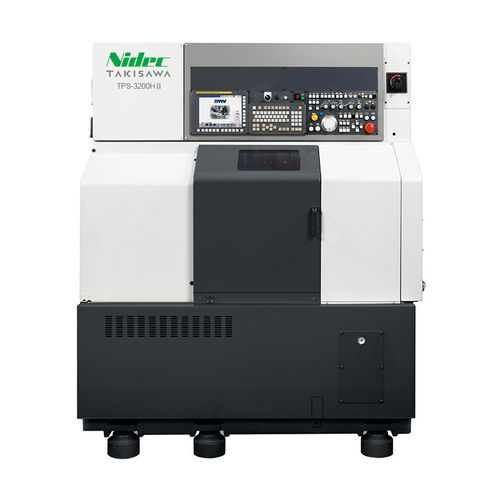

CNC lathe TPS-3200HⅡ

horizontalfor non-circular parts

The TPS-3200H2 is a piston-ring non-circular turning machine engineered for oval (apple-shaped) machining of piston ring inner diameter (ID) and outer diameter (OD), with integrated cut-off capability. It carries out OD turning on the normal tool post, then sequentially performs ID turning and cut-off using an X-axis ID turning tool holder and a cut-off tool holder mounted on the main tool post.

Applications / Key capabilities

• Oval (apple-shaped) machining of piston ring ID and OD
• Integrated cut-off operation immediately following turning
• Sequential single-clamping workflow: OD turning (normal tool post) → ID turning and cut-off (X-axis ID turning tool holder and cut-off tool holder on main tool post)

Characteristics / Technical specifications

• Max. Turning Diameter / Max. Turning Length: φ246 / 320 mm
• Spindle Speed: 1000 min-1
• Type of Turret: for Non-Circular Machining
• Spindle Motor: 7 kW
• Electric Power: 14.0 kVA
• Air Pressure Source: 0.5 MPa
• Machine Height: 1900 mm
• Required Floor Space: 1795 × 1850 mm
• Machine Weight: 2600 kg
