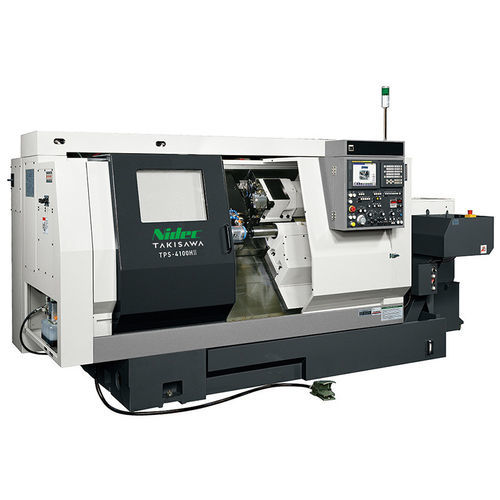

CNC lathe TPS-4100HⅡ
horizontal2-axisfor small parts production

CNC lathe - TPS-4100HⅡ - TAKISAWA - horizontal / 2-axis / for small parts production
CNC lathe - TPS-4100HⅡ - TAKISAWA - horizontal / 2-axis / for small parts production
Add to favorites
Compare this product

Characteristics

Control type
CNC
Spindle orientation
horizontal
Number of axes
2-axis
Applications
for small parts production, for non-circular parts
Performance
high-efficiency
Other characteristics
multi-function
Diameter

320 mm
(12.6 in)

Spindle speed

4,000 rpm
(25,132.741 rad.min-1)

Maximum part length

250 mm
(10 in)

Maximum cutting length

Max.: 250 mm
(10 in)

Min.: 250 mm
(10 in)

Nominal power

7.5 kW, 11 kW
(10.2 hp, 15 hp)

Overall lenght

3,880 mm
(153 in)

Overall width

2,673 mm
(105 in)

Overall height

1,850 mm
(73 in)

Weight

5,500 kg
(12,125 lb)

Description

Overview
A process-integration type 2-axis CNC lathe integrating a non-circular machining function to enable high-efficiency, variable-kind and small-lot production of pistons. Performs piston OD oval machining and supports an additional machining operation using one turret.

Applications
  • High-mix, low-volume piston production
  • Process consolidation to replace multi-step lines
  • Production of pistons with non-circular OD profiles


Main features
  • Integrated non-circular machining function for oval OD profiles
  • Single turret supporting an additional machining operation to consolidate processes
  • Designed for flexible, variable-kind production


Technical specifications
  • Max. Turning Diameter / Max. Turning Length: Φ320 / 250
  • Spindle Speed: 4000 min-1
  • Type of Turret: T1: Octagonal Drum Turret; T2: for Non-Circular Machining
  • Spindle Motor: 11 / 7.5 kW
  • Electric Power: 28.1 kVA
  • Air Pressure Source: 0.5 MPa
  • Machine Height: 1850 mm
  • Required Floor Space: 3880 × 2673 mm
  • Machine Weight: 5500 kg

Other TAKISAWA products

CNC Oval Turning Center (for piston machining)

*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
