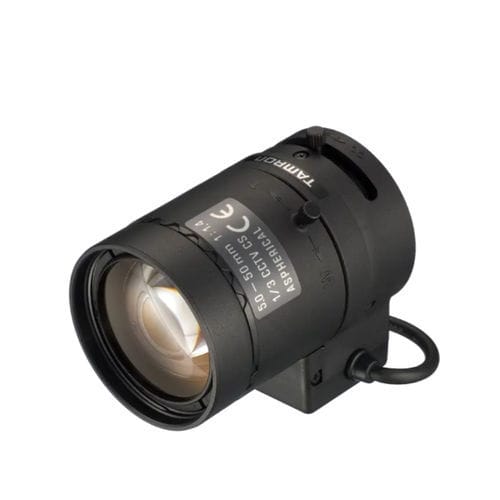

Varifocal camera objective 13VG550ASIICCTV video monitoringaspherical
Add to favorites
Compare this product
Characteristics
- Type
- varifocal
- Technical applications
- CCTV video monitoring
- Other characteristics
- aspherical
- Focal length
Max.: 50 mm
(1.97 in)Min.: 5 mm
(0.2 in)
Description
Imager Size - 1/3"
Mount Type - CS
Aperture Range - F/1.4 - 360
Field of View Angle
(Horizontal x Vertical) - 1/3" - Wide - 53.6° x 40.3°
Tele - 5.6° x 4.2°
1/4" - Wide - 40.3° x 30.1°
Tele - 4.2° x 3.1°
Focusing Range - 1.0m - ∞
Operation - Focus - Manual w/lock
Zoom - Manual w/lock
Iris - DC Auto Iris
Filter Size - -
Back Focal Distance - Wide : 10.05( in air )
Tele: 11.81mm( in air )
Wave Length - Visible Light
Operating Voltage - OPEN : 4.0V
CLOSE : 0.7V
Weight - 84g 士 4g
Operating Temperature - -20°C - +60°C
