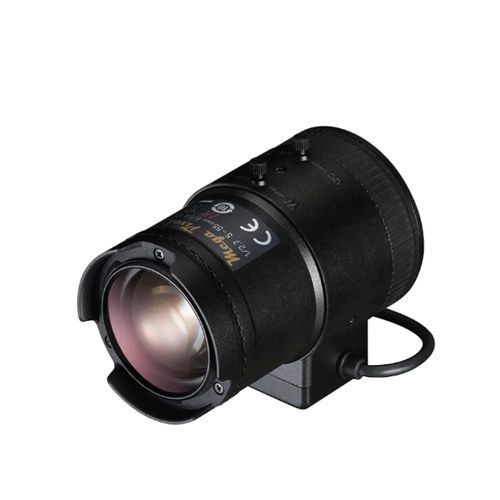

Varifocal camera lens M13VG555IRzoomCCTV video monitoringmegapixel resolution
Add to favorites
Compare this product
Characteristics
- Type
- zoom, varifocal
- Technical applications
- CCTV video monitoring
- Other characteristics
- megapixel resolution, IR, aspherical
- Focal length
Min.: 5 mm
(0.2 in)Max.: 55 mm
(2.17 in)
Description
Imager Size - 1/2.7"
Mount Type - CS
Aperture Length - F/1.6 - F/360
Field of View Angle
(Horizontal x Vertical) - 1/2.7" - Wide - 61.3° x 35.6°
Tele - 6.0° x 3.5°
1/3" - Wide - 56.2° x 32.4°
Tele - 5.5° x 3.2°
Focus Range - 2m - ∞
Operation - Focus - Manual w/lock
Zoom - Manual w/lock
Iris - DC Auto Iris
Back Focus(in air) - 7.69mm( in air )
Wave Length - Visible Light - Near Infrared
Operating Voltage - OPEN : 4V
CLOSE : 0.5V
Weight - 109.6g 士 5g
Operation Temperature - -20°C - +60°C
