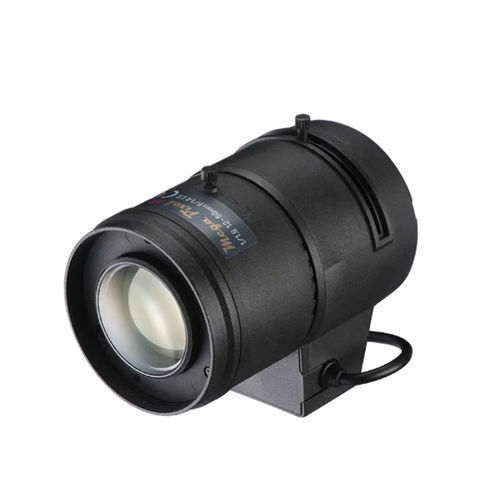

Varifocal camera lens M118VP1250IRCCTV video monitoringmegapixel resolutionIR
Add to favorites
Compare this product
Characteristics
- Type
- varifocal
- Technical applications
- CCTV video monitoring
- Other characteristics
- megapixel resolution, IR, aspherical
- Focal length
Min.: 12 mm
(0.47 in)Max.: 50 mm
(1.97 in)
Description
Imager Size - 1/1.8"
Mount Type - CS
Aperture Range - F/1.4 - Close
Field of View Angle
(Horizontal x Vertical) - 1/1.8" - Wide - 34.0° x 25.5°
Tele - 8.5° x 6.4°
1/2" - Wide - 29.9° x 22.4°
Tele - 7.5° x 5.6°
1/3" - Wide - 22.4° x 16.8°
Tele - 5.6° x 4.2°
Focusing Range - 1.0m - ∞
Operation - Focus - Manual w/lock
Zoom - Manual w/lock
Iris - P-IRIS( Steppingmotor switching control )
Excitation - Bi-Polar Type
Back Focal Distance - 9.62mm( in air )
Wave Length - Visible Light - Near Infrared
Operating Voltage - 3 - 5v
Weight - 128g 土 5g
Operating Temperature - -20°C - +60°C
