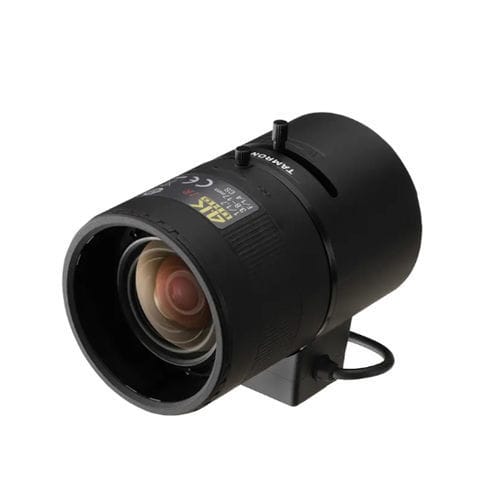

Varifocal camera lens M117VG3817IRwide-anglezoomCCTV video monitoring
Add to favorites
Compare this product
Characteristics
- Type
- zoom, wide-angle, varifocal
- Technical applications
- CCTV video monitoring
- Other characteristics
- megapixel resolution, IR, aspherical
- Focal length
Min.: 3.8 mm
(0.15 in)Max.: 17 mm
(0.67 in)
Description
Imager Size - 1/1.7"
Mount Type - CS
Aperture Range - F/1.4 - close
Angle of View
(Horizontal x Vertical) - 1/1.7" - Wide - 121.2° x 67.2°
Tele - 28.1° x 16.1°
1/1.8" - Wide - 114.2° x 63.5°
Tele - 26.6° x 15.2°
Focusing Range - 0.3m - ∞
Operation - Focus - Manual w/lock
Zoom - Manual w/lock
Iris - DC Auto Iris
Back Focal Distance - 8.66mm( in air )
Wave Length - Visible Light - Near Infrared
Operating Voltage - OPEN : 4V
CLOSE : 0.5V
Weight - 180g ± 5g
Operating Temperature - -20°C - +60°C
Catalogs
M117VG3817IR
1 Pages
