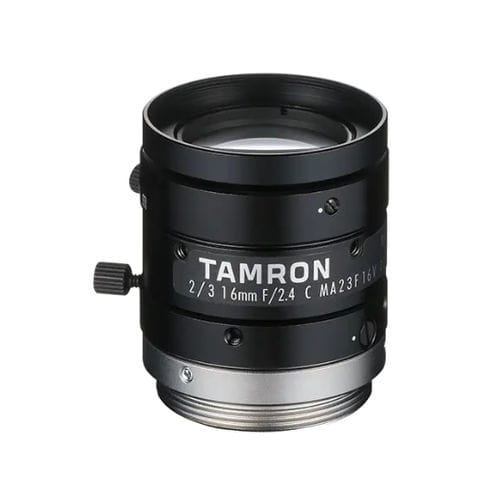

Fixed-focus camera lens MA23F16Vmachine visioncompactmegapixel resolution
Add to favorites
Compare this product
Characteristics
- Type
- fixed-focus
- Technical applications
- machine vision, compact
- Other characteristics
- megapixel resolution
- Focal length
16 mm
(0.63 in)
Description
Imager Size - 2/3"
Mount Type - C
Aperture Range - F/2.4 - F/16
Field of View Angle
(Horizontal x Vertical) - 2/3" (1:1) - 27.0° x 27.0°
2/3" (4:3) - 30.2° x 22.8°
2/3" (16:9) - 32.8° x 18.7°
1/1.8" (4:3) - 24.5° x 18.1°
1/2" (4:3) - 22.2° x 16.7°
1/3" (4:3) - 16.7° x 12.6°
Focus Range - 0.1m - ∞
( Recommended Shooting Distance 0.3m )
Operation - Focus - Manual w/lock
Iris - Manual w/lock
Filter Size - M27 P=0.5mm
Wave Length - Visible Light
TV Distortion - -0.05% (*)
Weight - 59g
Operating Temperature - -20°C - +60°C
