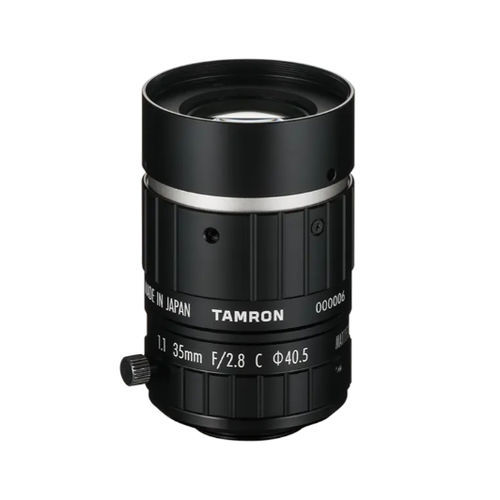

Fixed-focus camera lens MA111F35VIRinfraredmachine visioncompact
Add to favorites
Compare this product
Characteristics
- Type
- fixed-focus, infrared
- Technical applications
- machine vision, compact
- Other characteristics
- megapixel resolution
- Focal length
35 mm
(1.38 in)
Description
Imager Size - 1.1"
Mount Type - C
Aperture Range - F/2.8 - F/16
Field of View Angle
(Horizontal x Vertical) - 1.1" - 22.8° x 17.2°
2/3" - 14.4° x 10.8°
1/2" - 10.5° x 7.9°
Focusing Range - 0.2m - ∞
Operation - Focus - Manual w/lock
Iris - Manual w/lock
Filter Size - M40.5 P=0.5
Wave Length - Visible Light - Near Infrared
TV Distortion - -0.3% (*)
Weight - 179g
Operating Temperature - -20°C - +60°C
