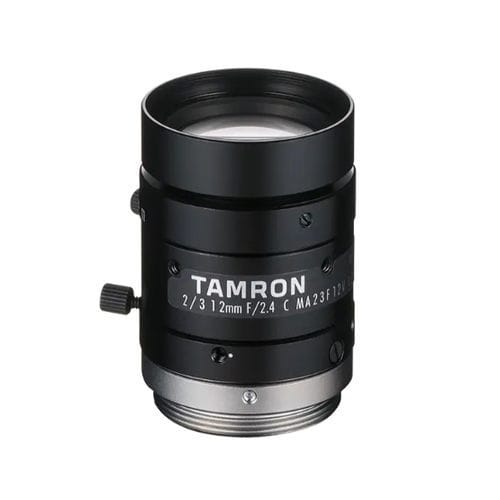

Fixed-focus camera lens MA23F12Vmachine visioncompactmegapixel resolution
Add to favorites
Compare this product
Characteristics
- Type
- fixed-focus
- Technical applications
- machine vision, compact
- Other characteristics
- megapixel resolution
- Focal length
12 mm
(0.47 in)
Description
Imager Size - 2/3"
Mount Type - C
Aperture Range - F/2.4 - F/16
Field of View Angle
(Horizontal x Vertical) - 2/3" (1:1) - 36.0° x 36.0°
2/3" (4:3) - 40.2° x 30.6°
2/3" (16:9) - 43.5° x 25.1°
1/1.8" (4:3) - 31.9° x 24.2°
1/2" (4:3) - 29.7° x 22.4°
1/3" (4:3) - 22.4° x 16.9°
Focus Range - 0.1m - ∞
( Recommended Shooting Distance 0.3m )
Operation - Focus - Manual w/lock
Iris - Manual w/lock
Filter Size - M27 P=0.5mm
Wave Length - Visible Light
TV Distortion - 0.4% (*)
Weight - 69g
Operating Temperature - -20°C - +60°C
