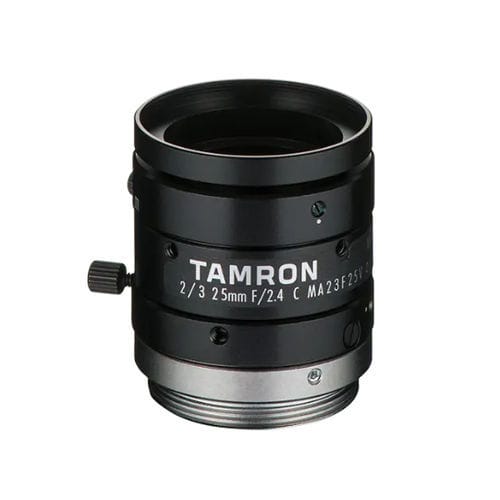

Fixed-focus camera lens MA23F25Vmachine visioncompactmegapixel resolution
Add to favorites
Compare this product
Characteristics
- Type
- fixed-focus
- Technical applications
- machine vision, compact
- Other characteristics
- megapixel resolution
- Focal length
25 mm
(0.98 in)
Description
Imager Size - 2/3"
Mount Type - C
Aperture Range - F/2.4 - F/16
Field of View Angle
(Horizontal x Vertical) - 2/3"(1:1) - 16.9° x 16.9°
2/3" (4:3) - 18.9° x 14.3°
2/3" (16:9) - 20.6° x 11.7°
1/1.8" (4:3) - 14.9° x 11.3°
1/2" (4:3) - 13.8° x 10.4°
1/3" (4:3) - 10.4° x 7.8°
Focus Range - 0.1m - ∞
( Recommended Shooting Distance 0.3m )
Operation - Focus - Manual w/lock
Iris - Manual w/lock
Filter Size - M27 P=0.5mm
Wave Length - Visible Light
TV Distortion - -0.01% (*)
Weight - 55g
Operating Temperature - -20°C - +60°C
