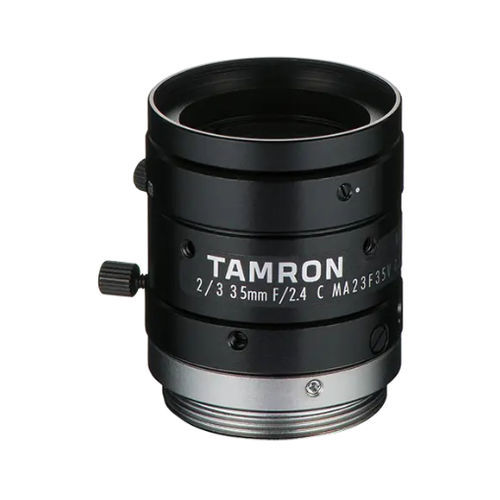

Fixed-focus camera lens MA23F35Vmachine visioncompactmegapixel resolution
Add to favorites
Compare this product
Characteristics
- Type
- fixed-focus
- Technical applications
- machine vision, compact
- Other characteristics
- megapixel resolution
- Focal length
35 mm
(1.38 in)
Description
Imager Size - 2/3"
Mount Type - C
Aperture Range - F/2.4 - F/16
Field of View Angle
(Horizontal x Vertical) - 2/3" (1:1) - 11.1° x 11.1°
2/3" (4:3) - 12.5° x 9.4°
2/3" (16:9) - 13.7° x 7.7°
1/1.8" (4:3) - 9.8° x 7.4°
1/2" (4:3) - 9.1° x 6.8°
1/3" (4:3) - 6.8° x 5.1°
Focus Range - 0.2m - ∞
( Recommended Shooting Distance 0.3m )
Operation - Focus - Manual w/lock
Iris - Manual w/lock
Filter Size - M27 P=0.5mm
Wave Length - Visible Light
TV Distortion - 0.04% (*)
Weight - 58g
Operating Temperature - -20°C - +60°C
