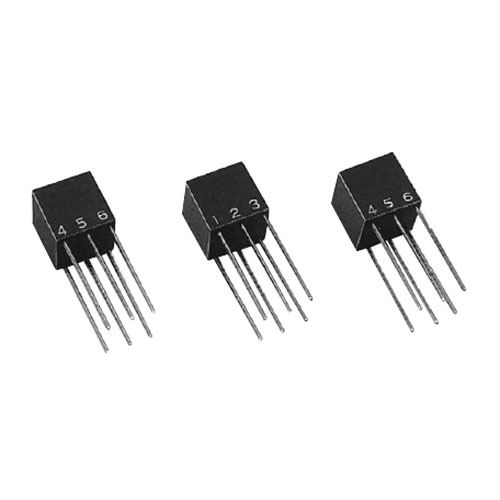

Frequency transformer MX serieselectrical power supplycast resinaudio
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Configuration
- cast resin
- Applications
- audio
- Mounting
- for printed circuit boards
- Other characteristics
- compact, frequency
Description
This product is an ultra compact audio frequency transformer, which is 0.25 cubic inches, for use on the printed circuit board. It is packed in a self-extinguishing plastic case. The pins are plated with gold, and the core is more compact than DL core and their performance is very excellent.
• Operating temperature: 130°C MAX.
• Dielectric Strength: AC150Vr.m.s. 1minute
• Thermal Shock: -55°C~+130°C
• Frequency range: 400Hz~250KHz, ±2dB
• Distortion: 7% MAX.
• Insertion loss: 3dB MAX.
• Minimum ordering quantity: 5pcs
