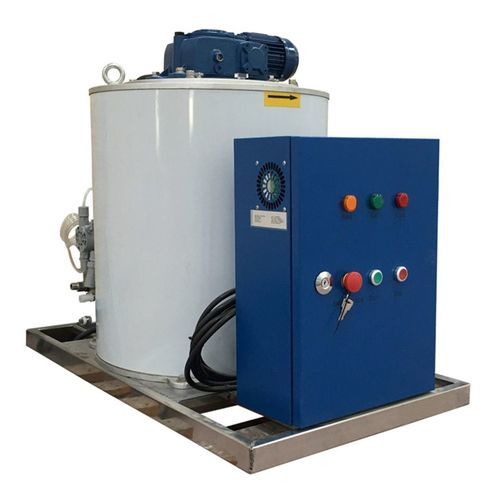

Flakes ice machine

for the food industry

TECHNICAL INFORMATION

• Water type: Fresh (city) water
• Total ice making capacity: 500 kg/day
• Ice making capacity (per hour): 20.83 kg/h
• Ice thickness: ~1.8–2 mm
• Power supply: 380–415 V, 3-phase, 50–60 Hz
• Ice temperature: -5°C
• Refrigerant: Freon R404A
• Unit weight: 250 kg
• Unit dimensions: 120 cm × 120 cm × 100 cm
• Power consumption: 2.94 kW/h
• Compressor capacity: 3 HP
• Condenser: Air condenser / 7550 m³/h

Product overview
The 500 kg/day fresh water flake ice machine produces food-grade, odorless flake ice from potable water. Its capacity and compact footprint make it suitable for small and medium-size operations that require continuous on-site ice production.

Typical applications include fishmongers, seafood markets, restaurants, butcher shops, supermarkets and small cold storage units. Flake ice provides gentle cooling that preserves product appearance and quality without freezing damage, making it ideal for seafood, meat and fresh produce.

In warm climates and developing cold chains, this capacity is commonly adopted to secure a reliable supply of hygienic ice, reduce external ice purchases and improve overall product handling and shelf life.

Manufacturer claims

• Manufacturer-direct production: designed, manufactured and tested in-house
• Engineered for continuous industrial operation in demanding environments
• Tested 24/7 under full-load conditions for stable performance
• Optimized refrigeration for higher efficiency and lower energy use
• Produces food-grade flake ice from fresh potable water
• Project-based solutions with system configuration adapted to site requirements
• Proven performance in international industrial projects

Why Choose Our Flake Ice Machines?

• Direct from manufacturer
• Designed for 24/7 industrial operation
• Food-grade fresh water ice
• Low energy and maintenance costs
• Customizable project engineering

Technical specifications

• Total ice making capacity: 500 kg/day
• Ice making capacity (per hour): 20.83 kg/h
• Ice thickness: ~1.8–2 mm
• Water type: Fresh (city) water
• Power supply: 380–415 V, 3-phase, 50–60 Hz
• Ice temperature: -5°C
• Refrigerant: Freon R404A
• Unit weight: 250 kg
• Unit dimensions: 120 cm × 120 cm × 100 cm
• Power consumption: 2.94 kW/h
• Compressor capacity: 3 HP
• Condenser: Air condenser / 7550 m³/h
