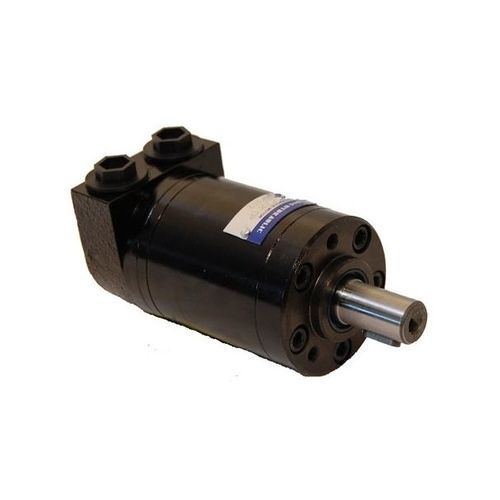

Orbital hydraulic motor MMS series

fixed-displacementindustriallow-speed

Hydraulic orbit motor / orbit motor MMS motors are small, lightweight, and very good for small drives. A high-power density is a strong feature on MMS motors. The integrated drum fuel in the drive shaft results in maximum performance in the smallest possible design. Hydraulic orbit motor with side ports 3/8" BSP Three bolts mount (6mm) Shaft Ø16 - Standard straight shaft with keyway DISTRIBUTOR VALVE MMS series motors have coil valve: the distributor valve is integrated with the output shaft. The cardan shaft rotates the distributor valve and transmits mechanical energy from the gerotor set to the output shaft. The valve has hydrodynamic bearings and has an infinite service life when load ratings are not exceeded. GEAR WHEEL SET Gerotor sets have ordinary teeth. This type of motors are suitable for long operating periods at moderate pressure or short operating periods at high pressure.
