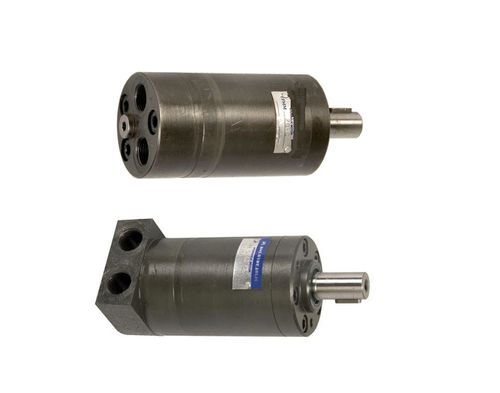

Orbital hydraulic motor MM / MMS series
low-speedindustrialfixed-displacement

orbital hydraulic motor
orbital hydraulic motor
orbital hydraulic motor
orbital hydraulic motor
Add to favorites
Compare this product


Characteristics

Technology
orbital
Other characteristics
fixed-displacement, industrial, low-speed
Pressure

Max.: 200 bar
(2,901 psi)

Min.: 70 bar
(1,015 psi)

Rotational speed

Max.: 2,450 rpm
(15,393.8 rad.min-1)

Min.: 400 rpm
(2,513.27 rad.min-1)

Torque

Max.: 8.8 daNm
(64.91 ft.lb)

Min.: 1.1 daNm
(8.11 ft.lb)

Displacement

Max.: 50 cm³
(1.69 US fl oz)

Min.: 8 cm³
(0.27 US fl oz)

Description

MM/MMS motors are on stock Also known as OMM motor, hydraulic motor. Wide range of Hydraulic Motors, many models and with large variety of characteristics. We can: • - offer advice and guidance to replace the Hydraulic Motor you use today • - replace almost any Hydraulic Motor you may need, for more info, see our webpage. • - replace Danfoss, Char-lynn, Parker motors See the selection on our website. If you don't find what you need, please feel free to send an inquiry to info@taon.dk Our range on stock is from 8cc to 50cc: OMM8 151G0040 OMM8 151G0041 OMM12 151G0004 OMM12 151G0001 OMM20 151G0005 OMM20 151G0002 OMM32 151G0006 OMM32 151G0003 OMM40 151G0279 OMM40 151G0277 OMM50 151G0013 OMM50 151G0037
