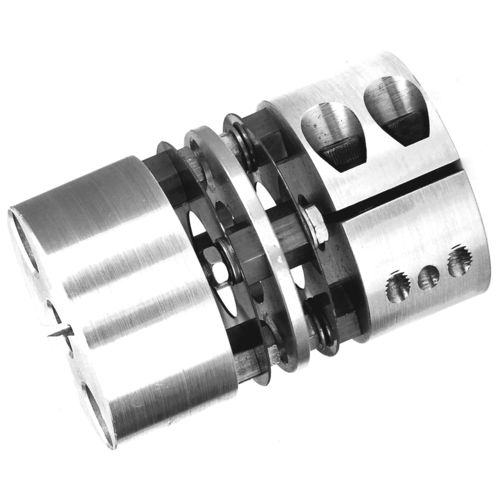

Membrane coupling FKZS seriestransmissionbacklash-freemaintenance-free
Add to favorites
Compare this product
Characteristics
- Type
- membrane
- Product applications
- transmission
- Performance
- backlash-free, maintenance-free
- Installation system
- flange
- Torque
Max.: 60 Nm
(44.253729 ft.lb)Min.: 0 Nm
(0 ft.lb)- Rotational speed
Max.: 25,000 rpm
(157,079.6327 rad.min-1)Min.: 0 rpm
(0 rad.min-1)
Description
Spring washer couplings enable backlash-free angularly aligned transmission of rotary movements. Very high torsional stiffness, low restoring forces. Extremely robust stainless steel spring washers. Good compensation of all misalignment, vibration damping. Tried-and-tested transmission element, also for critical applications. Long service live, maintenance-free, noiseless operation. Mounting with adjusting screw or clamping flange.
material of flange
aluminium alloy
steel
material of spring washer
spring steel stanless
polyamide fiberglass reinforced
