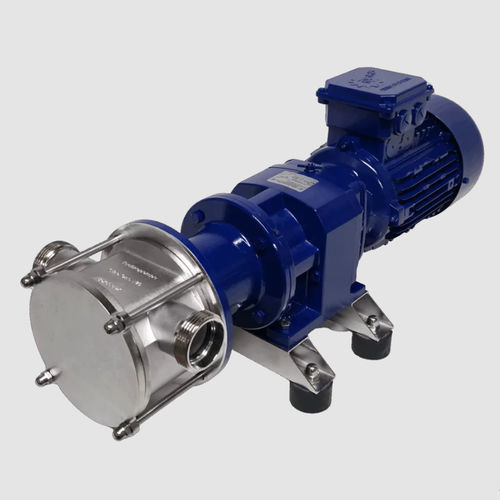

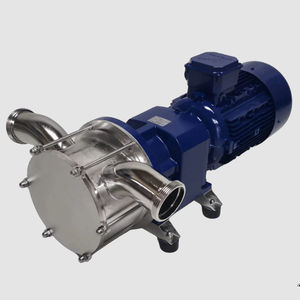

Impeller pump TONE120/40.150N
beveragefor winewater

Impeller pump - TONE120/40.150N - TECHNOPOMPE - beverage / for wine / water
Impeller pump - TONE120/40.150N - TECHNOPOMPE - beverage / for wine / water
Impeller pump - TONE120/40.150N - TECHNOPOMPE - beverage / for wine / water - image - 2
Add to favorites
Compare this product
Go to the TECHNOPOMPE website for more information

Characteristics

Technology
impeller
Fluid
water, beverage, for juice, for wine
Operation
electric
Priming
self-priming
Mobility
stationary, mobile
Domain
for the food industry, for the wine industry
Applications
transfer
Material
stainless steel, PTFE, EPDM
Fluid specification
for low-viscosity fluids, for medium-viscosity products
Voltage
380-415V
Protection level
IP66
Other characteristics
with gear reducer
Flow

Max.: 15,000 l/h
(3,962.58079 us gal/h)

Min.: 500 l/h
(132.08603 us gal/h)

Pressure

2 bar
(29.008 psi)

Power

1.5 kW
(2.04 hp)

Fluid temperature

70 °C
(158 °F)

Input diameter

40 mm
(1.575 in)

Output diameter

40 mm
(1.575 in)

Description

We have developed an impeller with features that significantly increase pump performance. Our modeling research and the quality of the elastomers used make our rotors more durable thanks to improved vane expansion. More dynamic in contact with the fluid, the pump is fully positive displacement across its entire speed range. You will find the right equipment for your application in this range. We will guide you in your selection for optimal performance. Since 2025, the rotors have complied with EC Regulation 1935/2004 and the French decree of August 5, 2020, concerning rubber materials and articles intended to come into contact with foodstuffs.

Design:
  • Precision wax-cast 316L stainless steel pump body
  • Elastomer rotor (CE1935-2004 compliant)
  • Interchangeable PTFE hub
  • Standing via standardized mechanical seal
  • Fluid contact parts made of 316L stainless steel
  • Maneuverable and ergonomic trolley
  • Stainless steel parts treated with electrolytic polishing
