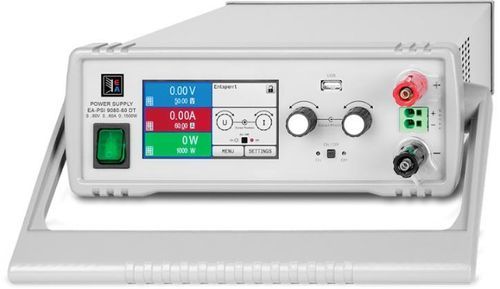

Tabletop power supply EA-PSI 9000 DT

DCmultiple-outputsingle-output

Overview
EA Elektro-Automatik programmable benchtop DC power supplies are available in desktop and tower form factors with single-unit power ranges from approximately 100 W up to 1.5 kW. Select models offer autoranging and a built-in function generator. Autoranging dynamically shifts current/voltage to maintain full output power across a wide voltage/current envelope. The integrated function generator supports standard waveforms and arbitrary/custom signals for simulation and test tasks.

User Interface
All bench supplies feature a TFT touchscreen for local control and fast configuration of test sequences. Intuitive HMI menus simplify parameter entry, sequencing and monitoring during development and production tests.

Highlights

• Form factors: desktop and tower for bench use or rack integration
• Autoranging: maintains full rated output power across a range of voltage/current combinations
• Built-in function/arbitrary waveform generator on select models (sine, triangle, rectangle, trapezoid, custom)
• TFT touchscreen HMI for quick setup and local control
• Single- and multi-channel options; modular system scalability for higher total power

Models / Series (excerpt)
EA-PSI 9000 DT | 0–320 W / 0–1.5 kW | 0–40 V up to 0–750 V | 0–4 A up to 0–60 A
EA PSI 9500 10 DT | 0–1.5 kW | 0–500 V | 0–10 A per channel
EA PSI 9200 25 DT | 0–1.5 kW | 0–200 V | 0–25 A per channel
EA PSI 9080 40 DT | 0–1 kW | 0–80 V | 0–40 A per channel
EA PSI 9200 04 DT | 0–320 W | 0–200 V | 0–4 A per channel
EA PSI 9040 40 DT | 0–1 kW | 0–40 V | 0–40 A per channel
EA PSI 9360 15 DT | 0–1.5 kW | 0–360 V | 0–15 A per channel
EA PSI 9500 06 DT | 0–1 kW | 0–500 V | 0–6 A per channel
EA PSI 9750 06 DT | 0–1.5 kW | 0–750 V | 0–6 A per channel
EA PSI 9750 04 DT | 0–1 kW | 0–750 V | 0–4 A per channel
EA PSI 9360 10 DT | 0–1 kW | 0–360 V | 0–10 A per channel
EA PSI 9080 60 DT | 0–1.5 kW | 0–80 V | 0–60 A per channel
EA PSI 9080 10 DT | 0–320 W | 0–80 V | 0–10 A
EA PSI 9040 60 DT | 0–1.5 kW | 0–40 V | 0–60 A per channel
EA PSI 9200 10 DT | 0–640 W | 0–200 V | 0–10 A per channel
EA PSI 9040 20 DT | 0–320 W | 0–40 V | 0–20 A
EA PSI 9080 20 DT | 0–640 W | 0–80 V | 0–20 A per channel
EA PSI 9200 15 DT | 0–1 kW | 0–200 V | 0–15 A per channel

Additional Notes
Autoranging allows a single supply to cover voltage/current combinations that otherwise require multiple fixed-range units, simplifying test benches and reducing cabinet space. Select models integrate advanced I/O and sequencing for ATE and R&D environments. PC control and automation are supported via EA Power Control software and standard drivers.

Technical specifications

• Power (single-unit examples): typical ranges 100 W up to 1.5 kW (various models: 320 W, 640 W, 1 kW, 1.5 kW)
• Max system power (parallel/cabinet): up to 30 kW (system dependent)
• Voltage range: model-dependent, common bench voltages 0–40 V up to 0–750 V; series capability up to ~2000 V
• Current range: model-dependent; examples 0–4 A up to 0–60 A per channel; system configurations provide higher total current
• Autoranging: automatic adjustment of current/voltage to maintain full output power across a broader operating envelope
• Built-in function/arbitrary waveform generator: sine, triangle, rectangle, trapezoid, arbitrary/custom (select models)
• Display / HMI: TFT touchscreen for local control
• Form factors: desktop and tower; modular systems for higher power and multi-channel setups
• Software: EA Power Control for Windows; IVI drivers and programming interfaces available
• Typical listed price range on product page: £2,220 – £2,770 (GBP)
